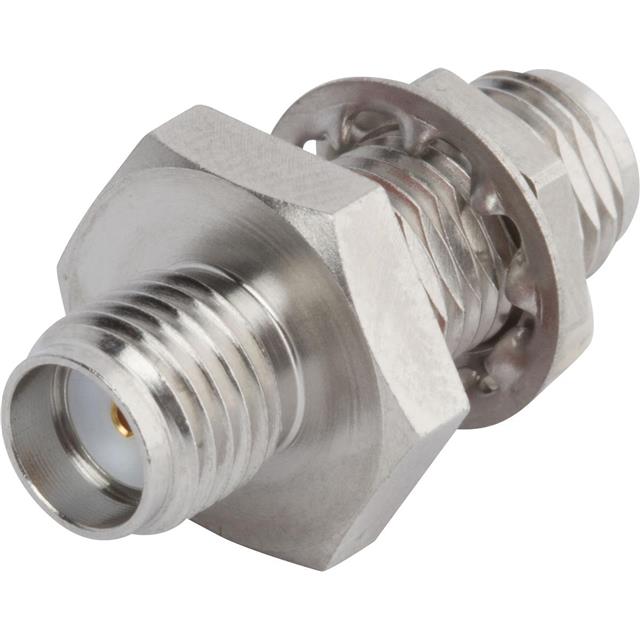

SF2990-6005

Active

Amphenol SV Microwave

CONN ADAPT JACK-JACK SMA 50 OHM

Search across all available documentation for this part.

Active

Amphenol SV Microwave

CONN ADAPT JACK-JACK SMA 50 OHM

Technical Specifications

Parameters and characteristics for this part

Specification	SF2990-6005

Adapter Series	SMA to SMA
Adapter Type	Jack to Jack
Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Center Gender	Female to Female
Conversion Type	Same Series
Convert From (Adapter End)	Female Socket, SMA Jack
Convert To (Adapter End)	SMA Jack, Female Socket
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	18 GHz
Impedance	50 Ohms
Includes	1 Nut, 1 Connector, 1 Lockwasher
Mating Cycles	500
Mounting Feature	Bulkhead
Style	Straight

Part	Mounting Feature	Conversion Type	Adapter Series	Impedance	Center Contact Material	Center Contact Plating	Frequency - Max [Max]	Convert To (Adapter End)	Center Gender	Includes	Mating Cycles	Dielectric Material	Convert From (Adapter End)	Style	Body Material	Adapter Type
Amphenol SV Microwave SF2990-6005	Bulkhead	Same Series	SMA to SMA	50 Ohms	Beryllium Copper	Gold	18 GHz	Female Socket SMA Jack	Female to Female	1 Connector 1 Lockwasher 1 Nut	500	Polytetrafluoroethylene (PTFE)	Female Socket SMA Jack	Straight	Stainless Steel	Jack to Jack

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector SMA Jack, Female Socket To SMA Jack, Female Socket 50 Ohms
