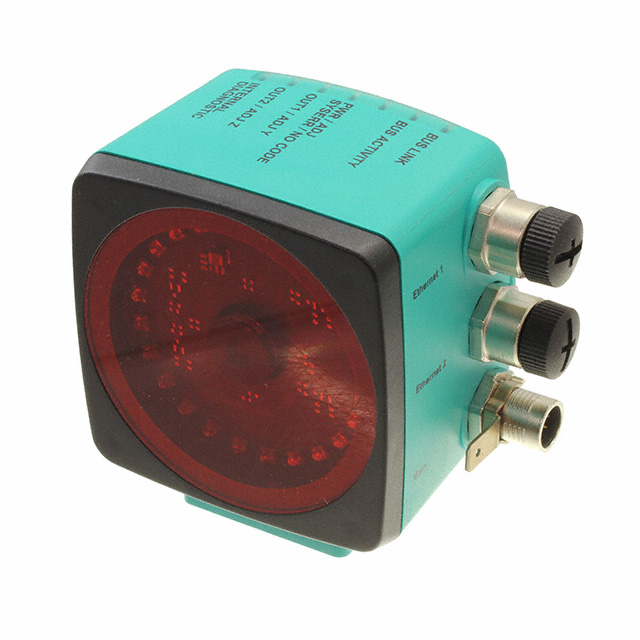

PCV100-F200-B25-V1D-6011
ActivePEPPERL+FUCHS
OPTICAL READ HEAD 100MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PCV100-F200-B25-V1D-6011 |
|---|---|
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Installation Distance | 100 mm |
| Light Source | Integrated (Red) |
| Mounting Type | Chassis Mount |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -20 C |
| Sensor Type | CMOS |
| Termination Style | Cable with Connector |
| Type | 2D Code Reader |
| Visual Field (Max) [x] | 60 mm |
| Visual Field (Max) [y] | 40 mm |
| Voltage - Supply [Max] | 30 VDC |
| Voltage - Supply [Min] | 15 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
PCV100 Series
OPTICAL READ HEAD 100MM
