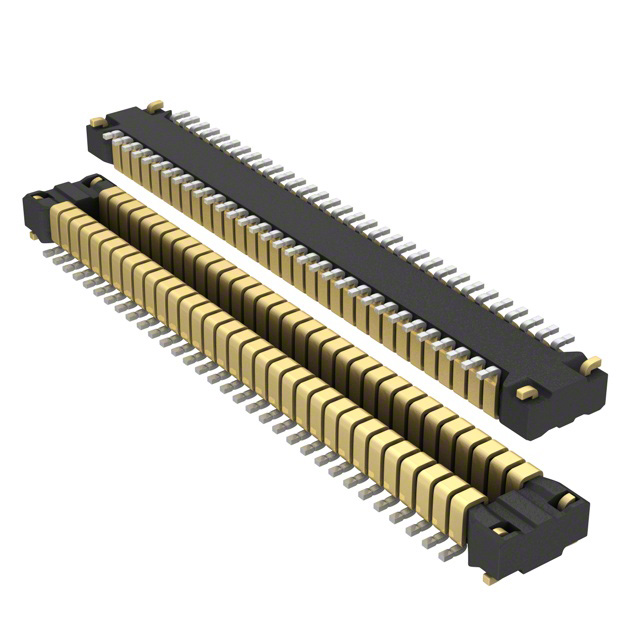

AXT664124

Obsolete

Panasonic Electric Works

CONN HDR 64POS SMD GOLD

Search across all available documentation for this part.

Obsolete

Panasonic Electric Works

CONN HDR 64POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	AXT664124

Connector Type	Header, Center Strip Contacts
Contact Finish	Gold
Features	Solder Retention
Height Above Board [z]	0.84 mm
Height Above Board [z]	0.033 "
Mated Stacking Heights	1 mm
Mounting Type	Surface Mount
Number of Positions	64
Number of Rows	2
Pitch [x]	0.016 in
Pitch [x]	0.4 mm

Part	Height Above Board [z]	Height Above Board [z]	Contact Finish	Number of Rows	Mounting Type	Number of Positions	Mated Stacking Heights	Pitch [x]	Pitch [x]	Connector Type	Features
Panasonic Electric Works AXT664124	0.84 mm	0.033 "	Gold	2	Surface Mount	64	1 mm	0.016 in	0.4 mm	Header Center Strip Contacts	Solder Retention

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

64 Position Connector Header, Center Strip Contacts Surface Mount Gold
