SSI-LXMP059SRD

Active

Lumex Opto/Components Inc.

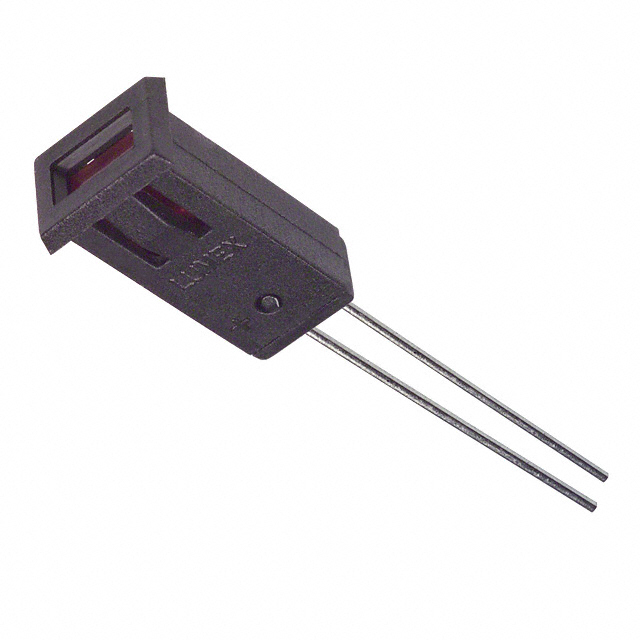

LED 2X5MM SUPER RED PANEL MOUNT

Search across all available documentation for this part.

Active

Lumex Opto/Components Inc.

LED 2X5MM SUPER RED PANEL MOUNT

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

LED Panel Indicator Red Diffused 110° 1.7V 30mA

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

LED 2X5MM GREEN PANEL MOUNT

Part	Voltage	Viewing Angle	Wavelength - Peak	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Lens Transparency	Type	Panel Cutout Shape	Lamp Color	Lens Size [y]	Lens Size [x]	Current	Lens Style	Millicandela Rating	Lens Color
Lumex Opto/Components Inc. SSI-LXMP059GD	2.2 V	110 °	565 nm	0.26 "	0.18 "	6.6 mm	4.57 mm	Diffused	LED	Rectangle	Green	1.83 mm	4.2 mm	25 mA	Rectangle with Flat Top	10 mcd	Green
Lumex Opto/Components Inc. SSI-LXMP059ID	2 V	110 °	635 nm	0.26 "	0.18 "	6.6 mm	4.57 mm	Diffused	LED	Rectangle	Red	1.83 mm	4.2 mm	30 mA	Rectangle with Flat Top	10 mcd	Red
Lumex Opto/Components Inc. SSI-LXMP059USBD150	3.5 V	110 °		0.26 "	0.18 "	6.6 mm	4.57 mm	Diffused	LED	Rectangle	Blue	1.83 mm	4.19 mm		Rectangle with Flat Top	50 mcd	Blue
Lumex Opto/Components Inc. SSI-LXMP059GD-150	2.2 V	110 °	565 nm	0.26 "	0.18 "	6.6 mm	4.57 mm	Diffused	LED	Rectangle	Green	1.83 mm	4.2 mm	25 mA	Rectangle with Flat Top	10 mcd	Green
Lumex Opto/Components Inc. SSI-LXMP059SRD	1.7 V	110 °	660 nm	0.26 "	0.18 "	6.6 mm	4.57 mm	Diffused	LED	Rectangle	Red	1.83 mm	4.2 mm	30 mA	Rectangle with Flat Top	25 mcd	Red
Lumex Opto/Components Inc. SSI-LXMP059ID-150	2 V	110 °	635 nm	0.26 "	0.18 "	6.6 mm	4.57 mm	Diffused	LED	Rectangle	Red	1.83 mm	4.2 mm	30 mA	Rectangle with Flat Top	10 mcd	Red
