ER741R5JT

Active

TE Connectivity Passive Product

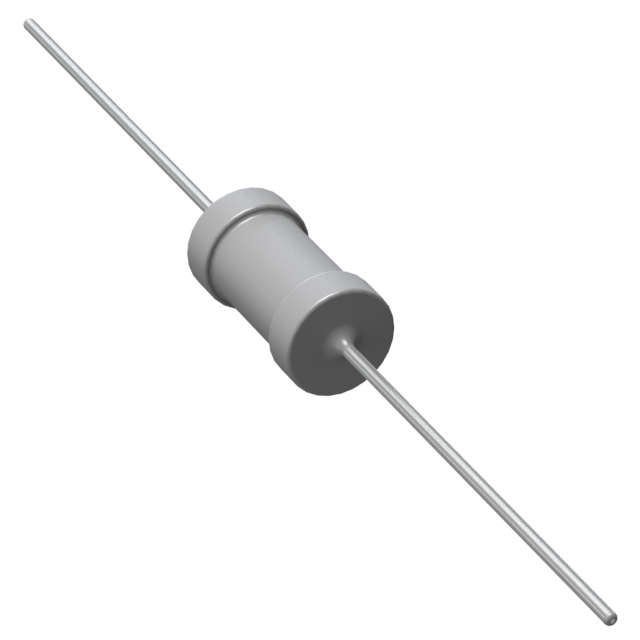

RES 1.5 OHM 5% 3W AXIAL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ER741R5JT

Active

TE Connectivity Passive Product

RES 1.5 OHM 5% 3W AXIAL

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ER741R5JT

Composition	Wirewound
Number of Terminations	2
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-55 °C
Package / Case	Axial
Power (Watts)	3 W
Size / Dimension [diameter]	0.236 in
Size / Dimension [diameter]	6 mm
Size / Dimension [x]	0.531 in
Size / Dimension [x]	13.5 mm
Supplier Device Package	Axial
Temperature Coefficient [Max]	60 ppm/°C
Temperature Coefficient [Min]	0 ppm/°C
Tolerance	5 %

ER74 Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Number of Terminations	Size / Dimension [x]	Size / Dimension [diameter]	Size / Dimension [x]	Size / Dimension [diameter]	Temperature Coefficient	Composition	Package / Case	Resistance	Power (Watts)	Tolerance	Supplier Device Package	Temperature Coefficient [Max]	Temperature Coefficient [Min]
TE Connectivity Passive Product ER74R033JT	-55 °C	200 °C	2	0.531 in	0.236 in	13.5 mm	6 mm	200 ppm/°C	Wirewound	Axial	33 mOhms	3 W	5 %	Axial
TE Connectivity Passive Product ER74R47KT	-55 °C	200 °C	2	0.531 in	0.236 in	13.5 mm	6 mm	200 ppm/°C	Wirewound	Axial	470 mOhms	3 W	10 %	Axial
TE Connectivity Passive Product ER743K9JT	-55 °C	200 °C	2	0.531 in	0.236 in	13.5 mm	6 mm		Wirewound	Axial	3.9 kOhms	3 W	5 %	Axial	60 ppm/°C	0 ppm/°C
TE Connectivity Passive Product ER7439RJT	-55 °C	200 °C	2	0.531 in	0.236 in	13.5 mm	6 mm		Wirewound	Axial	39 Ohms	3 W	5 %	Axial	60 ppm/°C	0 ppm/°C
TE Connectivity Passive Product ER74R05GT	-55 °C	200 °C	2	0.531 in	0.236 in	13.5 mm	6 mm	200 ppm/°C	Wirewound	Axial	0.05 Ohms	3 W	2 %	Axial
TE Connectivity Passive Product ER74100RJT	-55 °C	200 °C	2	0.531 in	0.236 in	13.5 mm	6 mm		Wirewound	Axial	100 Ohms	3 W	5 %	Axial	60 ppm/°C	0 ppm/°C
TE Connectivity Passive Product ER7482RJT	-55 °C	200 °C	2	0.531 in	0.236 in	13.5 mm	6 mm		Wirewound	Axial	82 Ohms	3 W	5 %	Axial	60 ppm/°C	0 ppm/°C
TE Connectivity Passive Product ER742R2FT	-55 °C	200 °C	2	0.531 in	0.236 in	13.5 mm	6 mm		Wirewound	Axial	2.2 Ohms	3 W	1 %	Axial	60 ppm/°C	0 ppm/°C
TE Connectivity Passive Product ER741R5JT	-55 °C	200 °C	2	0.531 in	0.236 in	13.5 mm	6 mm		Wirewound	Axial		3 W	5 %	Axial	60 ppm/°C	0 ppm/°C
TE Connectivity Passive Product ER74R12JT	-55 °C	200 °C	2	0.531 in	0.236 in	13.5 mm	6 mm	200 ppm/°C	Wirewound	Axial	0.12 Ohms	3 W	5 %	Axial

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.98
		10	$ 0.82
		25	$ 0.80
		50	$ 0.73
		100	$ 0.60
		250	$ 0.53
		500	$ 0.45
	Tape & Box (TB)	1000	$ 0.32

Description

General part information

ER74 Series

1.5 Ohms ±5% 3W Through Hole Resistor Axial Wirewound
