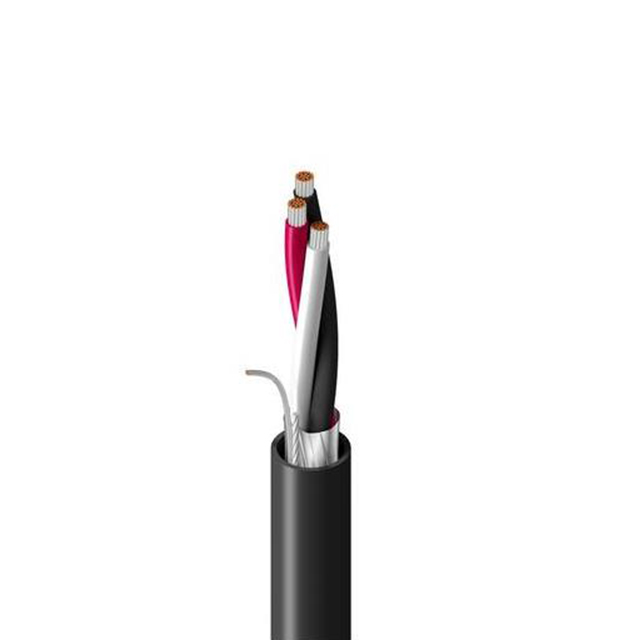

9365 060U1000

Active

Belden Inc.

MULTI-CONDUCTOR CABLES 18AWG 1TRIAD SHIELD 1000FT BOX CHROME

Search across all available documentation for this part.

Active

Belden Inc.

MULTI-CONDUCTOR CABLES 18AWG 1TRIAD SHIELD 1000FT BOX CHROME

Technical Specifications

Parameters and characteristics for this part

Specification	9365 060U1000

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	19
Conductor Strand [custom]	30 AWG
Features	Rip Cord, Drain Wire
Jacket (Insulation) Diameter [diameter]	6.6 mm
Jacket (Insulation) Diameter [diameter]	0.26 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.94 mm
Jacket (Insulation) Thickness	0.037 in
Jacket Color	Chrome
Length	1000 ft
Length	304.8 m
Number of Conductors	3
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-30 ░C
Ratings	UL Style 2464
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Usage	Instrumentation
Wire Gauge	18 AWG

Part	Shield Coverage	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Jacket (Insulation) Material	Jacket Color	Ratings	Conductor Insulation	Shield Type	Features	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Conductor Material	Number of Conductors	Wire Gauge	Shield Material	Length	Length	Cable Type	Usage	Length [x]	Length [x]
Belden Inc. 9365 0602500	100 %	6.6 mm	0.26 in	-30 ░C	105 ░C	Poly-Vinyl Chloride (PVC)	Chrome	UL Style 2464	Poly-Vinyl Chloride (PVC)	Foil	Drain Wire Rip Cord	19	30 AWG	0.94 mm	0.037 in	Copper Tinned	3	18 AWG	Aluminum	2500 ft	762 m	Multi-Conductor	Instrumentation
Belden Inc. 9365 060U1000	100 %	6.6 mm	0.26 in	-30 ░C	105 ░C	Poly-Vinyl Chloride (PVC)	Chrome	UL Style 2464	Poly-Vinyl Chloride (PVC)	Foil	Drain Wire Rip Cord	19	30 AWG	0.94 mm	0.037 in	Copper Tinned	3	18 AWG	Aluminum	1000 ft	304.8 m	Multi-Conductor	Instrumentation
Belden Inc. 9365 060U500	100 %	6.22 mm	0.245 in	-30 ░C	105 ░C	Poly-Vinyl Chloride (PVC)	Chrome		Poly-Vinyl Chloride (PVC)	Foil	Drain Wire Rip Cord	19	30 AWG	0.94 mm	0.037 in	Copper Tinned	3	18 AWG	Aluminum			Multi-Pair		500 '	152.4 m
Belden Inc. 9365 0605000	100 %	6.6 mm	0.26 in	-30 ░C	105 ░C	Poly-Vinyl Chloride (PVC)	Chrome	UL Style 2464	Poly-Vinyl Chloride (PVC)	Foil	Drain Wire Rip Cord	19	30 AWG	0.94 mm	0.037 in	Copper Tinned	3	18 AWG	Aluminum			Multi-Conductor	Instrumentation

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 3.74

General part information

3 (1 Triad) Conductor Multi-Conductor Cable Chrome 18 AWG Foil 1000.0' (304.8m)
