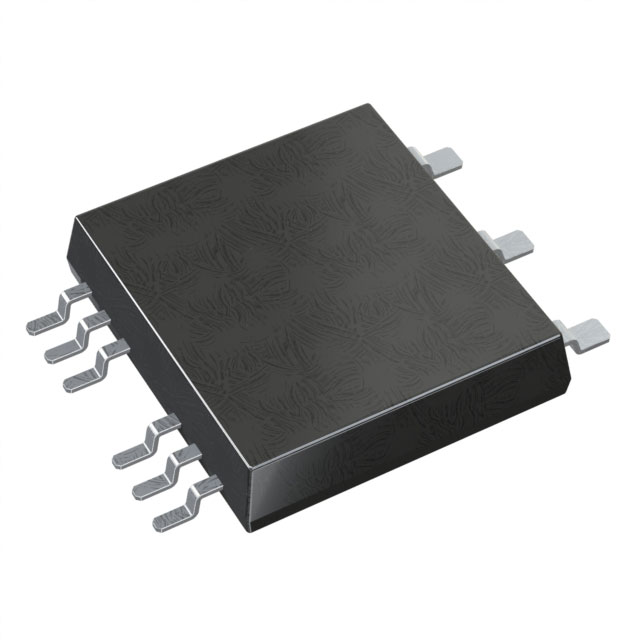

DLA100B1200LB-TRR

Active

IXYS

BRIDGE RECT 1P 1.2KV 132A SMPD.B

Search across all available documentation for this part.

Active

IXYS

BRIDGE RECT 1P 1.2KV 132A SMPD.B

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Bridge Rectifier Single Phase Standard 1.2 kV Surface Mount ISOPLUS-SMPD™.B

Technical documentation and resources

Specification	DLA100B1200LB-TRR	DLA100 Series

Current - Average Rectified (Io)	132 A	100 - 132 A
Current - Reverse Leakage @ Vr	10 µA	10 - 20 µA
Diode Type	Single Phase	Single Phase
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	175 ░C	150 - 175 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Package / Case	9-SMD Module	9-SMD Module, D3PAK (2 Leads + Tab), TO-268AA, TO-268-3
Supplier Device Package	ISOPLUS-SMPD™.B	ISOPLUS-SMPD™.B, TO-268AA (D3Pak-HV)
Technology	Standard	Standard
Voltage - Forward (Vf) (Max) @ If	-	1.34 V
Voltage - Peak Reverse (Max) [Max]	1.2 kV	1.2 kV

Part	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Peak Reverse (Max) [Max]	Technology	Mounting Type	Current - Reverse Leakage @ Vr	Package / Case	Current - Average Rectified (Io)	Supplier Device Package	Diode Type	Voltage - Forward (Vf) (Max) @ If
IXYS DLA100B1200LB-TRR	-55 °C	175 ░C	1.2 kV	Standard	Surface Mount	10 µA	9-SMD Module	132 A	ISOPLUS-SMPD™.B	Single Phase
IXYS DLA100IM1200TZ-TUB	-55 °C	150 °C	1.2 kV	Standard	Surface Mount	20 µA	D3PAK (2 Leads + Tab), TO-268-3, TO-268AA	100 A	TO-268AA (D3Pak-HV)	Single Phase	1.34 V
IXYS DLA100B1200LB-TUB	-55 °C	175 ░C	1.2 kV	Standard	Surface Mount	10 µA	9-SMD Module	132 A	ISOPLUS-SMPD™.B	Single Phase
