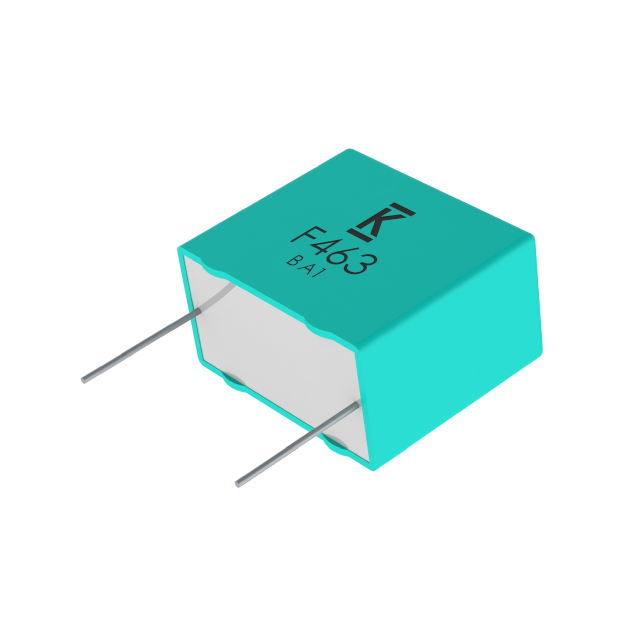

F463DO333J2K0Z

Obsolete

KEMET

CAP FILM 0.033UF 5% 2KVDC RADIAL

Search across all available documentation for this part.

Obsolete

KEMET

CAP FILM 0.033UF 5% 2KVDC RADIAL

Technical Specifications

Parameters and characteristics for this part

Specification	F463DO333J2K0Z

Applications	High Pulse, DV/DT
Capacitance	0.033 çF
Dielectric Material	Metallized, Polypropylene (PP)
Height - Seated (Max) [Max]	18.5 mm
Height - Seated (Max) [Max]	0.728 in
Lead Spacing	22.5 mm
Lead Spacing	0.886 in
Mounting Type	Through Hole
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Package / Case	Radial
Size / Dimension [x]	26 mm
Size / Dimension [x]	1.024 in
Size / Dimension [y]	0.394 in
Size / Dimension [y]	10 mm
Termination	PC Pins
Tolerance	5 %
Voltage Rating - AC	700 V
Voltage Rating - DC	2 kV
Voltage Rating - DC	2 kVDC

Part	Package / Case	Voltage Rating - DC	Voltage Rating - DC	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Dielectric Material	Termination	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Voltage Rating - AC	Mounting Type	Applications	Lead Spacing	Lead Spacing	Capacitance	Tolerance
KEMET F463DO333J2K0Z	Radial	2 kV	2 kVDC	18.5 mm	0.728 in	105 ░C	-55 °C	Metallized Polypropylene (PP)	PC Pins	26 mm	0.394 in	10 mm	1.024 in	700 V	Through Hole	DV/DT High Pulse	22.5 mm	0.886 in	0.033 çF	5 %

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

0.033 µF Film Capacitor 700V 2000V (2kV) Polypropylene (PP), Metallized Radial
