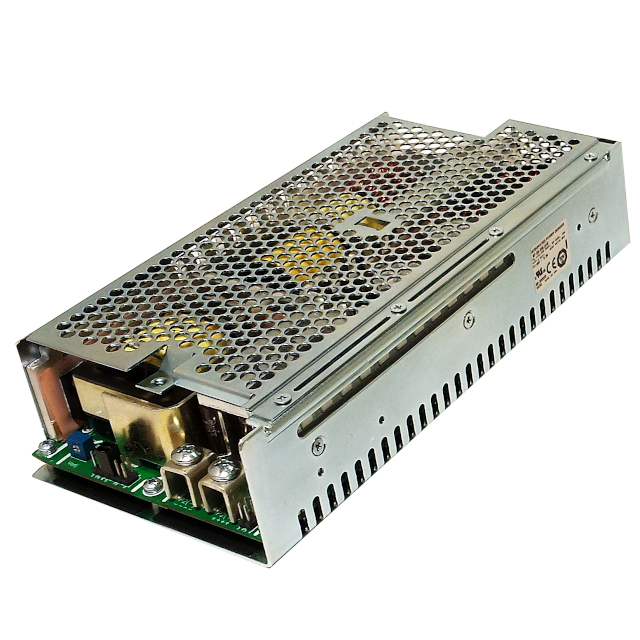

1010949CHCO

Active

Integrated Power Designs

AC/DC CONVERTER 28V 400W

Search across all available documentation for this part.

Active

Integrated Power Designs

AC/DC CONVERTER 28V 400W

Technical Specifications

Parameters and characteristics for this part

Specification	1010949CHCO

Applications	ITE (Commercial), Medical
Approval Agency	TUV, cURus, CE, UKCA
Current - Output 1	14.3 A
Efficiency	85 %
Features	Remote Sense, Universal Input, Adjustable Output
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	0 °C
Size / Dimension [x]	210.4 mm
Size / Dimension [x]	8.28 in
Size / Dimension [y]	4 "
Size / Dimension [y]	101.6 mm
Size / Dimension [z]	1.8 "
Size / Dimension [z]	45.7 mm
Standard Number	60601-1, 62368-1
Type	Enclosed
Voltage - Input [Max]	240 VAC
Voltage - Input [Min]	100 VAC
Voltage - Output 1	28 V

Part	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output 1	Voltage - Input [Max]	Voltage - Input [Min]	Efficiency	Number of Outputs	Features	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Approval Agency	Mounting Type	Type	Applications	Standard Number	Current - Output 1
Integrated Power Designs 1010949CHCO	70 °C	0 °C	28 V	240 VAC	100 VAC	85 %	1	Adjustable Output Remote Sense Universal Input	4 "	210.4 mm	101.6 mm	1.8 "	45.7 mm	8.28 in	CE cURus TUV UKCA	Chassis Mount	Enclosed	ITE (Commercial) Medical	60601-1 62368-1	14.3 A
Integrated Power Designs 1010949CH	70 °C	0 °C	28 V	240 VAC	100 VAC	85 %	1	Adjustable Output Remote Sense Universal Input	4 "	210.4 mm	101.6 mm	1.8 "	45.7 mm	8.28 in	CE cURus TUV UKCA	Chassis Mount	Chassis	ITE (Commercial) Medical	60601-1 62368-1	14.3 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Enclosed AC DC Converters 1 Output 28V 100 ~ 240 VAC Input
