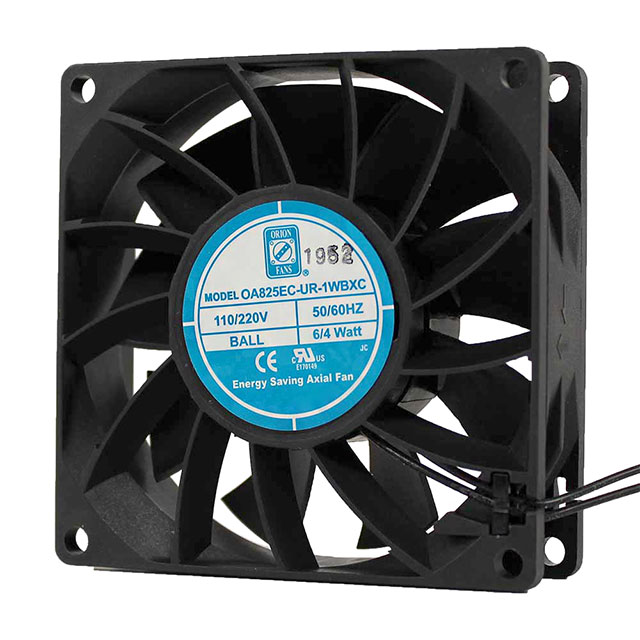

OA825EC-UR-1WBXC
ActiveOrion Fans
AC AXIAL FAN, 110V / 220V, SQUARE, 80 MM, 25.2 MM, BALL BEARING, 40.2 CFM
Deep-Dive with AI
Search across all available documentation for this part.
OA825EC-UR-1WBXC
ActiveOrion Fans
AC AXIAL FAN, 110V / 220V, SQUARE, 80 MM, 25.2 MM, BALL BEARING, 40.2 CFM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | OA825EC-UR-1WBXC |
|---|---|
| Air Flow | 1.13 mł/min |
| Air Flow | 40.2 CFM |
| Approval Agency | TUV, CE, cURus, UR |
| Bearing Type | Ball |
| Fan Type | Tubeaxial |
| Features | Dual Voltage, Electronic Commutation (EC) |
| Lifetime @ Temp. | 70000 Hrs |
| Material - Blade | Polybutylene Terephthalate (PBT) |
| Noise | 38 dB(A) |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -10 °C |
| Operating Temperature [Min] | -10 °C |
| Power (Watts) | 2.2 W |
| RPM | 3000 RPM |
| Size / Dimension [x] | 80 mm |
| Size / Dimension [y] | 80 mm |
| Static Pressure | 49.8 Pa |
| Static Pressure | 0.2 in H2O |
| Termination | 2 Wire Leads |
| Voltage - Rated [Max] | 220 VAC |
| Voltage - Rated [Min] | 110 VAC |
| Voltage Range [Max] | 265 VAC |
| Voltage Range [Min] | 85 VAC |
| Weight | 0.18 lb |
| Weight | 81.65 g |
| Width [x] | 25.2 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
OA825EC Series
Fan Tubeaxial 110/220VAC Square - 80mm L x 80mm H Ball 40.2 CFM (1.13m³/min) 2 Wire Leads
