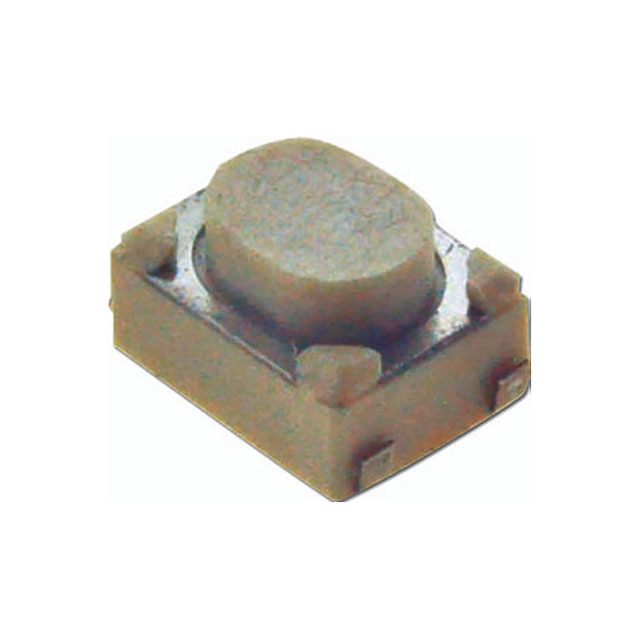

TL3365AF180QG

Active

E-Switch

SWITCH TACTILE SPST-NO 0.05A 12V

Search across all available documentation for this part.

Active

E-Switch

SWITCH TACTILE SPST-NO 0.05A 12V

Technical Specifications

Parameters and characteristics for this part

Specification	TL3365AF180QG

Actuator Height off PCB, Vertical [z]	2.5 mm
Actuator Orientation	Top Actuated
Actuator Type	Oval Button
Circuit	SPST-NO
Contact Rating @ Voltage	0.05 A, 12 VDC
Illumination	Non-Illuminated
Mechanical Life	100000 Cycles
Mounting Type	Surface Mount
Operating Force	180 gf
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 C
Outline [x]	4.2 mm
Outline [y]	3.2 mm
Switch Function	Off-Mom
Switch Travel	0.2 mm
Termination Style	Gull Wing

Part	Termination Style	Operating Force	Actuator Height off PCB, Vertical [z]	Circuit	Mechanical Life	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Orientation	Illumination	Contact Rating @ Voltage	Actuator Type	Outline [y]	Outline [x]	Switch Function	Mounting Type	Switch Travel
E-Switch TL3365AF180QG	Gull Wing	180 gf	2.5 mm	SPST-NO	100000 Cycles	-20 C	70 °C	Top Actuated	Non-Illuminated	0.05 A 12 VDC	Oval Button	3.2 mm	4.2 mm	Off-Mom	Surface Mount	0.2 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Tactile Switch SPST-NO Top Actuated Surface Mount
