1411075

Active

Phoenix Contact

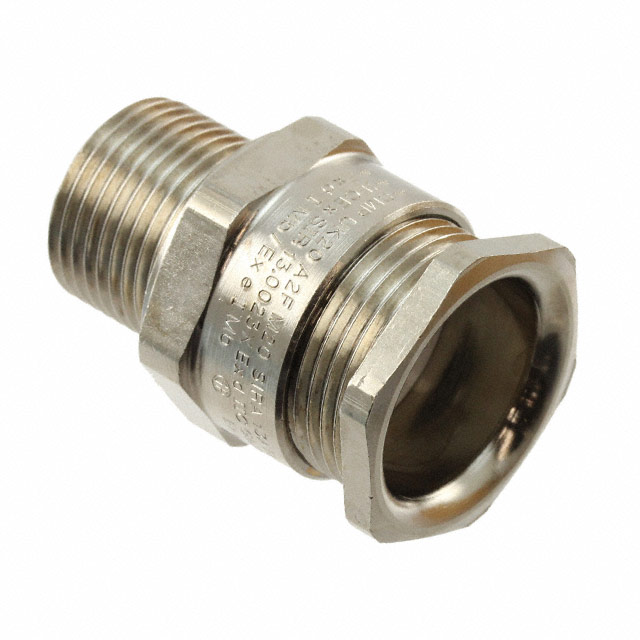

CABLE GLAND 6.5-14MM M20 BRASS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

1411075

Active

Phoenix Contact

CABLE GLAND 6.5-14MM M20 BRASS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 10.06
		10	$ 9.26
		50	$ 8.55
		100	$ 8.15
		250	$ 8.11

Description

General part information

G-ESS Series

Cable Gland Brass, Nickel Plated M20 Silver

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1411075	G-ESS Series

Color	Silver	Silver
Includes	O-Ring, Seal	O-Ring, Seal
Ingress Protection	IP68, IP66, IP67	IP68, IP66, IP67
Material	Brass, Nickel Plated	Brass, Nickel Plated, Stainless Steel
Operating Temperature [Max]	130 °C	130 °C
Operating Temperature [Min]	-60 °C	-60 °C
Outside Cable Diameter (Max)	-	0.787 - 2.205 in
Outside Cable Diameter (Max)	-	20 - 44.1 mm
Outside Cable Diameter (Max)	-	56 mm
Outside Cable Diameter (Max) [Max]	14 mm	14 mm
Outside Cable Diameter (Max) [Max]	0.551 "	0.551 "
Outside Cable Diameter (Min)	-	23.5 mm
Outside Cable Diameter (Min)	-	0.925 "
Outside Cable Diameter (Min)	-	0.437 in
Outside Cable Diameter (Min)	-	11.18 mm
Outside Cable Diameter (Min) [Min] [diameter]	6.5 mm	6.5 - 35.6 mm
Outside Cable Diameter (Min) [Min] [diameter]	0.256 in	0.256 - 1.402 in
Thread Length	0.591 in	0.591 in
Thread Length	15 mm	15 mm
Thread Size	M20	M25, M20, M50, M63, M32
Type	Cable Gland	Cable Gland

G-ESS Series

CABLE GLND 23.5-32.2MM M40 BRASS

Part	Ingress Protection	Includes	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Thread Length	Thread Length	Type	Color	Operating Temperature [Max]	Operating Temperature [Min]	Material	Thread Size	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Max) [Max]	Outside Cable Diameter (Max) [Max]	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Max)	Outside Cable Diameter (Min)
Phoenix Contact 1411081	IP66, IP67, IP68	O-Ring, Seal	23.5 mm	0.925 "	1.268 in	32.2 mm	0.591 in	15 mm	Cable Gland	Silver	130 °C	-60 °C	Brass, Nickel Plated
Phoenix Contact 1411078	IP66, IP67, IP68	O-Ring, Seal			0.787 "	20 mm	0.591 in	15 mm	Cable Gland	Silver	130 °C	-60 °C	Stainless Steel	M25	11.1 mm	0.437 in
Phoenix Contact 1411075	IP66, IP67, IP68	O-Ring, Seal					0.591 in	15 mm	Cable Gland	Silver	130 °C	-60 °C	Brass, Nickel Plated	M20	6.5 mm		14 mm	0.551 "	0.256 in
Phoenix Contact 1411084	IP66, IP67, IP68	O-Ring, Seal			1.736 "	44.1 mm	0.591 in	15 mm	Cable Gland	Silver	130 °C	-60 °C	Brass, Nickel Plated	M50	35.6 mm				1.402 in
Phoenix Contact 1411087	IP66, IP67, IP68	O-Ring, Seal			2.205 in		0.591 in	15 mm	Cable Gland	Silver	130 °C	-60 °C	Stainless Steel	M63						56 mm
Phoenix Contact 1411086	IP66, IP67, IP68	O-Ring, Seal			2.205 in		0.591 in	15 mm	Cable Gland	Silver	130 °C	-60 °C	Brass, Nickel Plated	M63						56 mm
Phoenix Contact 1411085	IP66, IP67, IP68	O-Ring, Seal			1.736 "	44.1 mm	0.591 in	15 mm	Cable Gland	Silver	130 °C	-60 °C	Stainless Steel	M50	35.6 mm				1.402 in
Phoenix Contact 1411079	IP66, IP67, IP68	O-Ring, Seal			1.035 in	26.3 mm	0.591 in	15 mm	Cable Gland	Silver	130 °C	-60 °C	Brass, Nickel Plated	M32
Phoenix Contact 1411077	IP66, IP67, IP68	O-Ring, Seal			0.787 "	20 mm	0.591 in	15 mm	Cable Gland	Silver	130 °C	-60 °C	Brass, Nickel Plated	M25					0.44 in		11.18 mm
