7-338-4PP-BA

Active

CTS Thermal Management Products

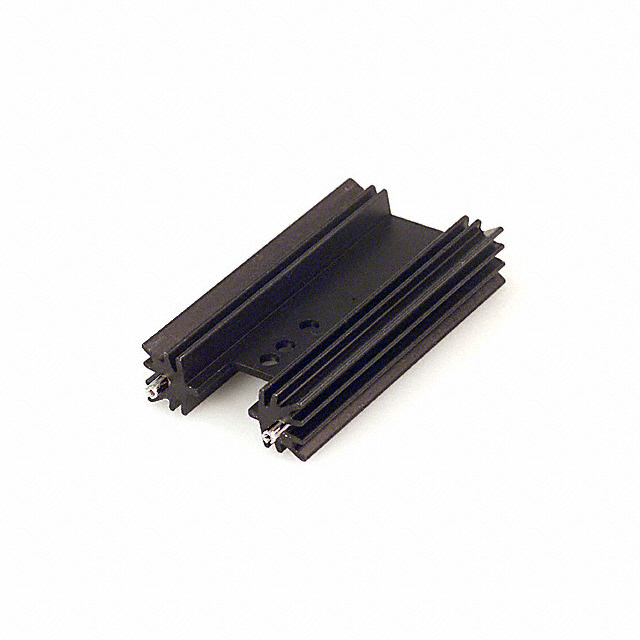

HEATSINK PWR W/PINS BLACK TO-220

Search across all available documentation for this part.

Active

CTS Thermal Management Products

HEATSINK PWR W/PINS BLACK TO-220

Technical Specifications

Parameters and characteristics for this part

Specification	7-338-4PP-BA

Attachment Method	PC Pin, Bolt On
Fin Height [z]	12.7 mm
Fin Height [z]	0.5 in
Length [x]	63.5 mm
Length [x]	2.5 in
Material	Aluminum
Material Finish	Black Anodized
Package Cooled	TO-220
Power Dissipation @ Temperature Rise	40 °C, 9 W
Shape	Rectangular, Fins
Thermal Resistance @ Natural	5.7 °C/W
Type	Board Level, Vertical
Width	1.38 "
Width	35.05 mm

HEATSINK PWR W/PINS BLACK TO-220

Part	Fin Height [z]	Fin Height [z]	Length [x]	Length [x]	Material Finish	Type	Package Cooled	Material	Power Dissipation @ Temperature Rise	Shape	Attachment Method	Thermal Resistance @ Natural	Width	Width
CTS Thermal Management Products 7-338-4PP-BA	12.7 mm	0.5 in	63.5 mm	2.5 in	Black Anodized	Board Level, Vertical	TO-220	Aluminum	9 W, 40 °C	Rectangular, Fins	Bolt On, PC Pin	5.7 °C/W	1.38 "	35.05 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Heat Sink TO-220 Aluminum 9.0W @ 40°C Board Level, Vertical
