CD431699C

Active

SCR MODULE DUAL

Active

SCR MODULE DUAL

Description

General part information

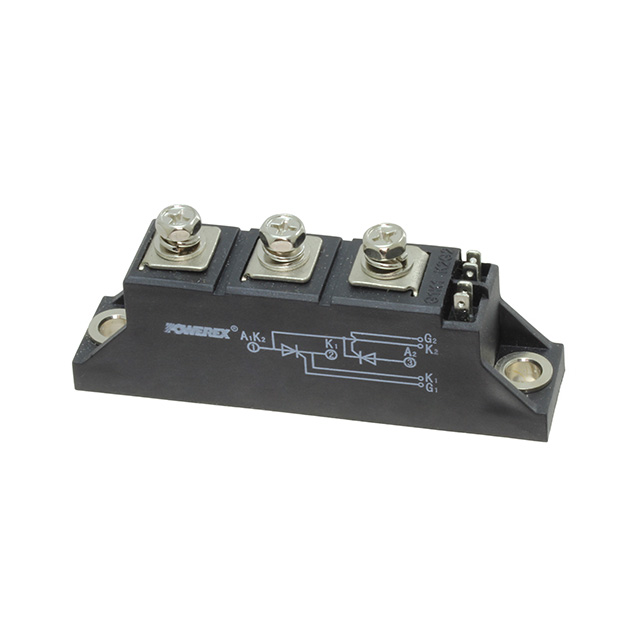

SCR Module 1.6 kV 173 A Series Connection - All SCRs Chassis Mount POW-R-BLOK™ Module

Parameters and characteristics for this part

Specification	CD431699C

Current - Gate Trigger (Igt) (Max)	100 mA
Current - Hold (Ih) (Max)	150 mA
Current - Non Rep. Surge (Itsm)	2.4 kA
Current - Non Rep. Surge Frequencies	50Hz, 60Hz
Current - Non Rep. Surge Type	Itsm
Current - On State (It (RMS)) (Max)	173 A
Current - On State (Max)	110 A
Mounting Type	Chassis Mount
Number of SCRs	2 count
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-40 °C
Package / Case	POW-R-BLOK™ Module
Structure	Series Connection - All SCRs
Voltage - Gate Trigger (Vgt) (Max)	2.5 V
Voltage - Off State	1.6 kV

Part	Structure	Current - Hold (Ih) (Max)	Current - Non Rep. Surge Frequencies	Current - Non Rep. Surge Type	Current - Non Rep. Surge (Itsm)	Package / Case	Number of SCRs	Operating Temperature (Max)	Operating Temperature (Min)	Voltage - Gate Trigger (Vgt) (Max)	Voltage - Off State	Mounting Type	Current - On State (It (RMS)) (Max)	Current - Gate Trigger (Igt) (Max)	Current - On State (Max)
Powerex Inc. CD431699C	Series Connection - All SCRs	150 mA	50Hz 60Hz	Itsm	2.4 kA	POW-R-BLOK™ Module	2 count	125 °C	-40 °C	2.5 V	1.6 kV	Chassis Mount	173 A	100 mA	110 A
