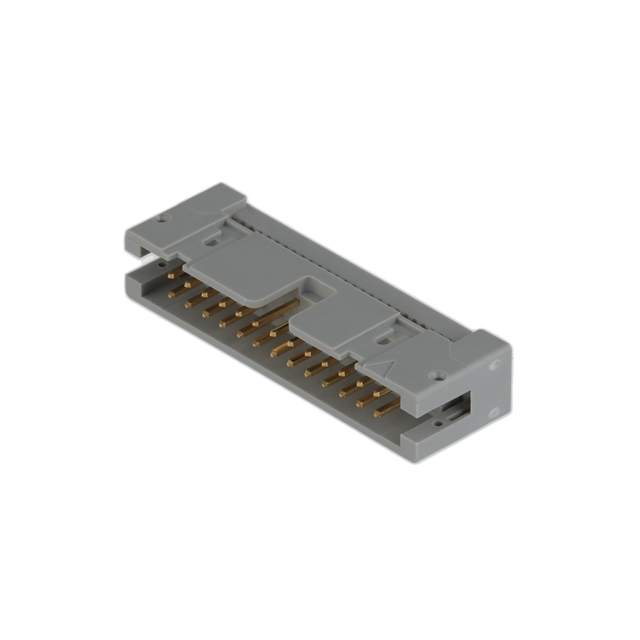

IDC CONNECTOR, IDC PLUG, MALE, 2.54 MM, 2 ROW, 26 CONTACTS, CABLE MOUNT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Interconnect Catalog

4626-6001

Active

3M (TC)

IDC CONNECTOR, IDC PLUG, MALE, 2.54 MM, 2 ROW, 26 CONTACTS, CABLE MOUNT

Deep-Dive with AI

DocumentsDatasheet Interconnect Catalog

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	4626-6001

Cable Termination	IDC
Color	Gray
Connector Type	Plug
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Type	Male Pin
Features	Feed Through
Mounting Type	Free Hanging (In-Line)
Number of Positions	26
Number of Rows	2
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Row Spacing	2.54 mm
Row Spacing [x]	0.1 in
Wire Gauge	Solid, Stranded
Wire Gauge [Max]	28 AWG
Wire Gauge [Min]	26 AWG
Wire Type	Discrete or Ribbon Cable

4626 Series

Part	Connector Type	Contact Finish	Number of Positions	Mounting Type	Number of Rows	Row Spacing [x]	Row Spacing	Contact Finish Thickness	Contact Finish Thickness	Pitch [x]	Pitch [x]	Cable Termination	Contact Type	Wire Type	Wire Gauge [Min]	Wire Gauge [Max]	Wire Gauge	Features	Color	Fastening Type
3M (TC) 4626-B300	Plug	Gold	26	Free Hanging (In-Line)	2	0.1 in	2.54 mm	0.76 Ám	30 Áin	2.54 mm	0.1 in	IDC	Male Pin	Discrete or Ribbon Cable	26 AWG	28 AWG	Solid Stranded
3M (TC) 4626-7000	Plug	Gold	26	Free Hanging (In-Line)	2	0.1 in	2.54 mm	0.76 Ám	30 Áin	2.54 mm	0.1 in	IDC	Male Pin	Discrete or Ribbon Cable	26 AWG	28 AWG	Solid Stranded	Closed End	Gray
3M (TC) 4626-6000	Plug	Gold	26	Free Hanging (In-Line)	2	0.1 in	2.54 mm	0.76 Ám	30 Áin	2.54 mm	0.1 in	IDC	Male Pin	Discrete or Ribbon Cable	26 AWG	28 AWG	Solid Stranded	Feed Through	Gray
3M (TC) 4626-6205	Plug	Gold	26	Free Hanging (In-Line)	2	0.1 in	2.54 mm	0.76 Ám	30 Áin	2.54 mm	0.1 in	IDC	Male Pin	Discrete or Ribbon Cable	26 AWG	28 AWG	Solid Stranded	Feed Through	Gray	Latch Lock/Eject Hooks Short
3M (TC) 4626-6305	Plug	Gold	26	Free Hanging (In-Line)	2	0.1 in	2.54 mm	0.76 Ám	30 Áin	2.54 mm	0.1 in	IDC	Male Pin	Discrete or Ribbon Cable	26 AWG	28 AWG	Solid Stranded	Feed Through	Gray	Latch Lock/Eject Hooks Long
3M (TC) 4626-7200	Plug	Gold	26	Free Hanging (In-Line)	2	0.1 in	2.54 mm	0.76 Ám	30 Áin	2.54 mm	0.1 in	IDC	Male Pin	Discrete or Ribbon Cable	26 AWG	28 AWG	Solid Stranded	Closed End	Gray	Latch Lock/Eject Hooks Short
3M (TC) 4626-6001	Plug	Gold	26	Free Hanging (In-Line)	2	0.1 in	2.54 mm	0.76 Ám	30 Áin	2.54 mm	0.1 in	IDC	Male Pin	Discrete or Ribbon Cable	26 AWG	28 AWG	Solid Stranded	Feed Through	Gray
3M (TC) 4626-6300	Plug	Gold	26	Free Hanging (In-Line)	2	0.1 in	2.54 mm	0.76 Ám	30 Áin	2.54 mm	0.1 in	IDC	Male Pin	Discrete or Ribbon Cable	26 AWG	28 AWG	Solid Stranded	Feed Through	Gray	Latch Lock/Eject Hooks Long
3M (TC) 4626-7205	Plug	Gold	26	Free Hanging (In-Line)	2	0.1 in	2.54 mm	0.76 Ám	30 Áin	2.54 mm	0.1 in	IDC	Male Pin	Discrete or Ribbon Cable	26 AWG	28 AWG	Solid Stranded	Closed End	Gray	Latch Lock/Eject Hooks Short
3M (TC) 4626-7005	Plug	Gold	26	Free Hanging (In-Line)	2	0.1 in	2.54 mm	0.76 Ám	30 Áin	2.54 mm	0.1 in	IDC	Male Pin	Discrete or Ribbon Cable	26 AWG	28 AWG	Solid Stranded	Closed End	Gray

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 10.83
		10	$ 9.75
		25	$ 9.18
		50	$ 8.95
		100	$ 8.71
		300	$ 7.77
		600	$ 7.30
		1200	$ 6.45
Newark	Each	1	$ 11.78
		10	$ 11.31
		25	$ 10.32
		50	$ 9.85
		100	$ 9.33
		250	$ 8.34
		500	$ 7.87
		1000	$ 6.88

Description

General part information

4626 Series

The 4626-6001 is a 26-way 0.100 x 0.100-inch Wire to Board Connector for 0.050-inch pitch cable, with gold-plated copper alloy contacts and IDC/IDT termination. This 4600 series wiremount plug/connector is glass filled polyester (PBT) insulated, shrouded to protect against physical and chemical pin damage. This wire to board connector has open end cover, military (with 3518 polarizing key) and centerbump polarization for 26-contacts without mounting flange.
