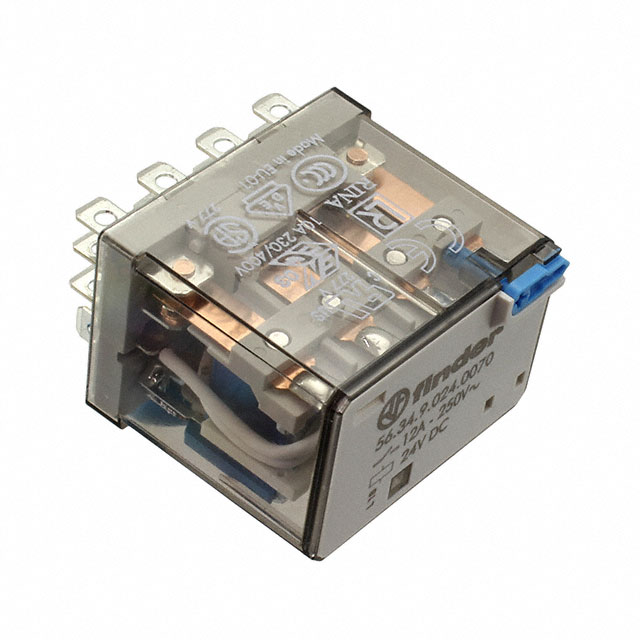

RELAY GEN PURPOSE 4PDT 12A 24V

56.34.9.024.0070

Active

Finder Relays, Inc.

RELAY GEN PURPOSE 4PDT 12A 24V

Description Specifications Series Pricing CAD Documents

Description

General part information

56.34.9 Series

General Purpose Relay 4PDT (4 Form C) 24VDC Coil Socketable

Technical Specifications

Parameters and characteristics for this part

Specification	56.34.9.024.0070

Approval Agency	cURus, CE, ENEC, RINA, UKCA, CCC, VDE, CSA, EAC
Coil Current	49 mA
Coil Resistance	490 Ohms
Coil Type	Non Latching
Coil Voltage	24 VDC
Contact Form	PDT, 4, Form, C
Contact Material	Silver Nickel (AgNi)
Contact Rating (Current)	12 A
Features	Test Button, Lighted Indicator
Load - Max Switching (Apparent Power)	4800 VA
Mounting Type	Socketable
Must Operate Voltage	19.2 V
Must Release Voltage	4.8 VAC
Operate Time	11 ms
Operating Temperature (Max)	70 °C
Operating Temperature (Min)	-40 °C
Pin Count	4
Quick Connect Size (0.187")	0.187 in
Relay Type	General Purpose
Release Time	11 ms
Switching Voltage AC (Max)	400 VAC
Termination Style	Plug In, Quick Connect

56.34.9 Series

Part	Must Operate Voltage	Switching Voltage AC (Max)	Operate Time	Relay Type	Operating Temperature (Min)	Operating Temperature (Max)	Must Release Voltage	Quick Connect Size (0.187")	Termination Style	Contact Rating (Current)	Mounting Type	Pin Count	Contact Form	Release Time	Features	Coil Current	Coil Type	Load - Max Switching (Apparent Power)	Contact Material	Approval Agency	Coil Voltage	Coil Resistance
Finder Relays, Inc. 56.34.9.125.0040	100 V	400 VAC	11 ms	General Purpose	-40 °C	70 °C	25 VAC	0.187 in	Plug In Quick Connect	12 A	Socketable	4	4 C Form PDT	11 ms	Mechanical Indicator Test Button	8.8 mA	Non Latching	4800 VA	Silver Nickel (AgNi)	CCC CE CSA cURus EAC ENEC RINA UKCA VDE	125 VDC	14.2 kOhms
Finder Relays, Inc. 56.34.9.024.0070	19.2 V	400 VAC	11 ms	General Purpose	-40 °C	70 °C	4.8 VAC	0.187 in	Plug In Quick Connect	12 A	Socketable	4	4 C Form PDT	11 ms	Lighted Indicator Test Button	49 mA	Non Latching	4800 VA	Silver Nickel (AgNi)	CCC CE CSA cURus EAC ENEC RINA UKCA VDE	24 VDC	490 Ohms
Finder Relays, Inc. 56.34.9.012.0040	9.6 VDC	400 VAC	11 ms	General Purpose	-40 °C	70 °C	2.4 V	0.187 in	Plug In Quick Connect	12 A	Socketable	4	4 C Form PDT	11 ms	Mechanical Indicator Test Button	97 mA	Non Latching	4800 VA	Silver Nickel (AgNi)	CCC CE CSA cURus EAC ENEC RINA UKCA VDE	12 VAC	123 Ohms
Finder Relays, Inc. 56.34.9.012.0074	9.6 VDC	400 VAC	11 ms	General Purpose	-40 °C	70 °C	2.4 V	0.187 in	Plug In Quick Connect	12 A	Socketable	4	4 C Form PDT	11 ms	Lighted Indicator Mechanical Indicator Test Button	97 mA	Non Latching	4800 VA	Silver Nickel (AgNi)	CCC CE CSA cURus EAC ENEC RINA UKCA VDE	12 VAC	123 Ohms
Finder Relays, Inc. 56.34.9.024.0060	19.2 V	400 VAC	11 ms	General Purpose	-40 °C	70 °C	4.8 VAC	0.187 in	Plug In Quick Connect	12 A	Socketable	4	4 C Form PDT	11 ms	Lighted Indicator	49 mA	Non Latching	4800 VA	Silver Nickel (AgNi)	CCC CE CSA cURus EAC ENEC RINA UKCA VDE	24 VDC	490 Ohms
Finder Relays, Inc. 56.34.9.024.0000T	19.2 V	400 VAC	11 ms	General Purpose	-40 °C	70 °C	4.8 VAC	0.187 in	Plug In Quick Connect	12 A	Socketable	4	4 C Form PDT	11 ms		49 mA	Non Latching	4800 VA	Silver Nickel (AgNi)	CCC CE CSA cURus EAC ENEC RINA UKCA VDE	24 VDC	490 Ohms
Finder Relays, Inc. 56.34.9.110.0000	88 V	400 VAC	11 ms	General Purpose	-40 °C	70 °C	22 VDC	0.187 in	Plug In Quick Connect	12 A	Socketable	4	4 C Form PDT	11 ms		10.5 mA	Non Latching	4800 VA	Silver Nickel (AgNi)	CCC CE CSA cURus EAC ENEC RINA UKCA VDE	110 V	10.4 kOhms
Finder Relays, Inc. 56.34.9.024.4040	19.2 V	400 VAC	11 ms	General Purpose	-40 °C	70 °C	4.8 VAC	0.187 in	Plug In Quick Connect	12 A	Socketable	4	4 C Form PDT	11 ms	Mechanical Indicator Test Button	49 mA	Non Latching	4800 VA	Silver Tin Oxide (AgSnO)	CCC CE CSA cURus EAC ENEC RINA UKCA VDE	24 VDC	490 Ohms
Finder Relays, Inc. 56.34.9.012.0000	9.6 VDC	400 VAC	11 ms	General Purpose	-40 °C	70 °C	2.4 V	0.187 in	Plug In Quick Connect	12 A	Socketable	4	4 C Form PDT	11 ms		97 mA	Non Latching	4800 VA	Silver Nickel (AgNi)	CCC CE CSA cURus EAC ENEC RINA UKCA VDE	12 VAC	123 Ohms
