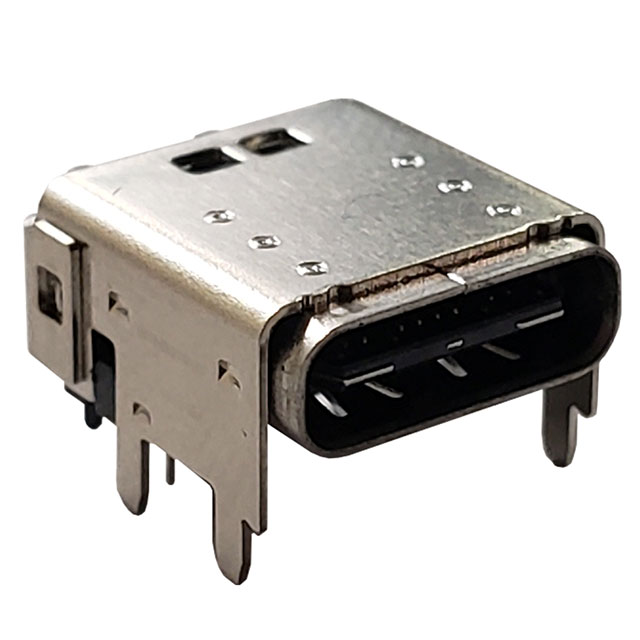

USB-C40-S-RA-BK-30-TR

Active

Adam Tech

CONN RCPT USB4.0 R/A THRU-HOLE

Search across all available documentation for this part.

Active

Adam Tech

CONN RCPT USB4.0 R/A THRU-HOLE

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

USB-C (USB TYPE-C) USB 4.0 Receptacle Connector 24 Position Through Hole, Right Angle

Technical documentation and resources

Specification	USB-C40-S-RA-BK-30-TR	USB-C40 Series

Connector Type	USB-C (USB TYPE-C)	USB-C (USB TYPE-C)
Contact Finish	Gold	Gold
Current Rating (Amps)	7 A	1.25 - 7 A
Features	Board Guide	Board Guide
Gender	Receptacle	Receptacle
Insulation Color	Black	Black
Material Flammability Rating	UL94 V-0	UL94 V-0
Mating Cycles	10000	10000
Mounting Feature	Horizontal	Horizontal
Mounting Type	Through Hole, Right Angle	Through Hole, Surface Mount, Right Angle, Through Hole, Right Angle
Number of Contacts	24	24
Number of Ports	1	1
Operating Temperature [Max]	105 ░C	85 - 105 °C
Operating Temperature [Min]	-20 C	-40 - -20 °C
Shell/Shielding Material	Stainless, Steel	Stainless, Steel
Shielding	Shielded	Shielded
Specifications	USB 4.0	USB 4.0
Termination	Solder	Solder

Part	Termination	Mounting Feature	Operating Temperature [Max]	Operating Temperature [Min]	Mating Cycles	Shielding	Connector Type	Gender	Shell/Shielding Material	Mounting Type	Number of Ports	Number of Contacts	Contact Finish	Current Rating (Amps)	Specifications	Material Flammability Rating	Insulation Color	Features
Adam Tech USB-C40-S-RA-CS1-SMT-BK-30-T/R	Solder	Horizontal	85 °C	-40 °C	10000	Shielded	USB-C (USB TYPE-C)	Receptacle	Stainless, Steel	Surface Mount, Right Angle, Through Hole	1	24	Gold	1.25 A, 5 A	USB 4.0	UL94 V-0	Black
Adam Tech USB-C40-S-RA-BK-30-TR	Solder	Horizontal	105 ░C	-20 C	10000	Shielded	USB-C (USB TYPE-C)	Receptacle	Stainless, Steel	Through Hole, Right Angle	1	24	Gold	7 A	USB 4.0	UL94 V-0	Black	Board Guide
