5020.039.228

Active

Flexa

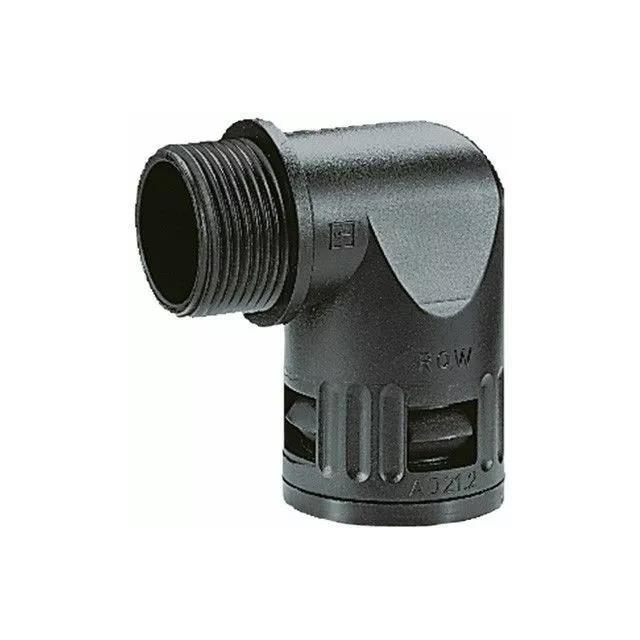

RQW 90 DEGREE ELBOW CONNECTOR, F

Search across all available documentation for this part.

Active

Flexa

RQW 90 DEGREE ELBOW CONNECTOR, F

Technical Specifications

Parameters and characteristics for this part

Specification	5020.039.228

Color	Black
Ingress Protection	IP68, IP69K
Material	Polyamide (PA), Nylon
Operating Temperature [Max]	120 °C
Operating Temperature [Min]	-40 °C
Outside Cable Diameter (Max) [Max] [diameter]	43.94 mm
Outside Cable Diameter (Max) [Max] [diameter]	1.73 in
Outside Cable Diameter (Min) [Min] [diameter]	1.1 in
Outside Cable Diameter (Min) [Min] [diameter]	27.94 mm
Thread Length	16 mm
Thread Length	0.63 in
Thread Size	1" NPT
Type	Cable Grip - 90°

RQW 90 DEGREE ELBOW CONNECTOR, F

Part	Type	Thread Length	Thread Length	Color	Material	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Ingress Protection	Thread Size	Operating Temperature [Min]	Operating Temperature [Max]	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]
Flexa 5020.039.228	Cable Grip - 90°	16 mm	0.63 in	Black	Polyamide (PA), Nylon	1.1 in	27.94 mm	IP68, IP69K	1" NPT	-40 °C	120 °C	43.94 mm	1.73 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 194.80

General part information

Cable Grip - 90° Polyamide (PA), Nylon 1" NPT Black
