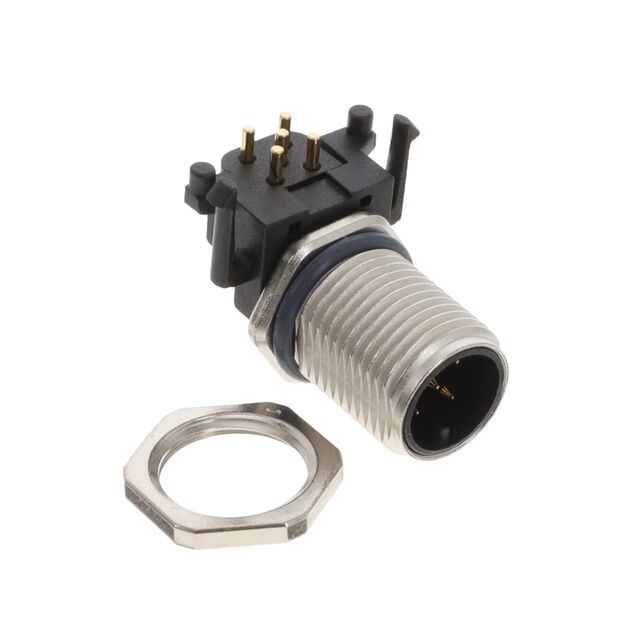

M12A-05PMMR-SF7003

Active

Amphenol LTW

CONN M12 MALE RA 5PIN PCB M12

Search across all available documentation for this part.

Active

Amphenol LTW

CONN M12 MALE RA 5PIN PCB M12

Technical Specifications

Parameters and characteristics for this part

Specification	M12A-05PMMR-SF7003

Color	Silver
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	4 A
Features	Board Guide, Board Lock
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polyamide (PA), Nylon, Glass Filled
Mounting Feature	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Right Angle, Panel Mount
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	A
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Zinc Alloy
Shell Size - Insert	M12-5
Shielding	Unshielded
Termination	Solder
Voltage Rating	60 VDC

Part	Insert Material	Shell Material	Shielding	Shell Finish	Voltage Rating	Color	Shell Size - Insert	Contact Finish - Mating	Mounting Type	Current Rating (Amps)	Primary Material	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Termination	Mounting Feature	Orientation	Features	Ingress Protection
Amphenol LTW M12A-05PMMR-SF8002	Polyamide (PA) Nylon Glass Filled	Zinc Alloy	Unshielded	Nickel	60 VDC	Silver	M12-5	Gold	Panel Mount Right Angle Through Hole	4 A	Metal	Male Pins Receptacle	-40 °C	105 ░C	Copper Alloy	Solder	Bulkhead - Front Side Nut	A	Board Guide Board Lock	IP68 - Dust Tight Waterproof
Amphenol LTW M12A-05PMMR-EE0001	Thermoplastic	Zinc Alloy	Shielded	Nickel	60 VDC	Silver	M12-5	Gold	Through Hole Right Angle	4 A	Metal	Male Pins Receptacle	-40 °C	105 ░C	Copper Alloy	Solder		A	Board Guide Board Lock	IP67 - Dust Tight Waterproof
Amphenol LTW M12A-05PMMR-SF7003	Polyamide (PA) Nylon Glass Filled	Zinc Alloy	Unshielded	Nickel	60 VDC	Silver	M12-5	Gold	Panel Mount Right Angle Through Hole	4 A	Metal	Male Pins Receptacle	-40 °C	105 ░C	Copper Alloy	Solder	Bulkhead - Front Side Nut	A	Board Guide Board Lock	IP67 - Dust Tight Waterproof
Amphenol LTW M12A-05PMMR-SF8001	Polyamide (PA) Nylon Glass Filled	Zinc Alloy	Unshielded	Nickel	60 VDC	Silver	M12-5	Gold	Panel Mount Right Angle Through Hole	4 A	Metal	Male Pins Receptacle	-40 °C	105 ░C	Copper Alloy	Solder	Bulkhead - Front Side Nut	A	Board Guide Board Lock	IP68 - Dust Tight Waterproof

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5 Position Circular Connector Receptacle, Male Pins Solder
