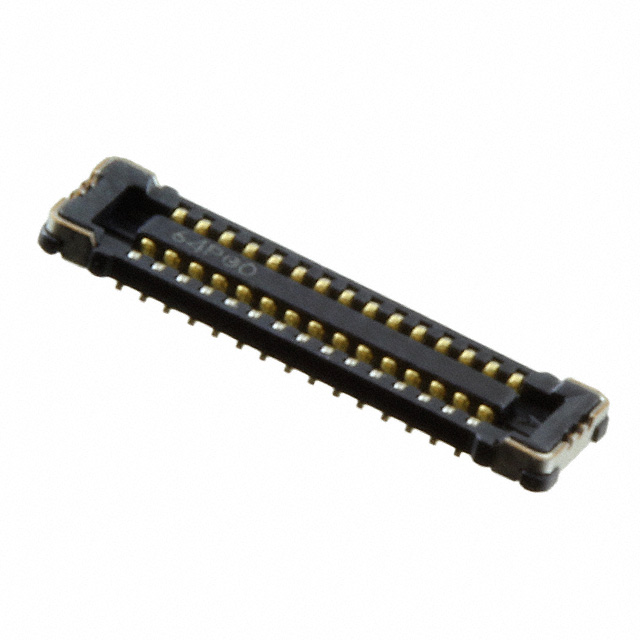

WP21-S030VA1-R8000
ActiveJAE Electronics
CONN RCPT 30POS SMD GOLD
WP21-S030VA1-R8000
ActiveJAE Electronics
CONN RCPT 30POS SMD GOLD
Description
General part information
WP21-S03 Series
30 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold
Technical Specifications
Parameters and characteristics for this part
| Specification | WP21-S030VA1-R8000 |
|---|---|
| Connector Type | Center Strip Contacts, Receptacle |
| Contact Finish | Gold |
| Contact Finish Thickness | 4 µin |
| Features | Solder Retention |
| Height Above Board | 0.023 in |
| Mated Stacking Height | 0.6 mm |
| Mounting Type | Surface Mount |
| Number of Positions | 30 |
| Number of Rows | 2 |
| Pitch | 0.014 in |
