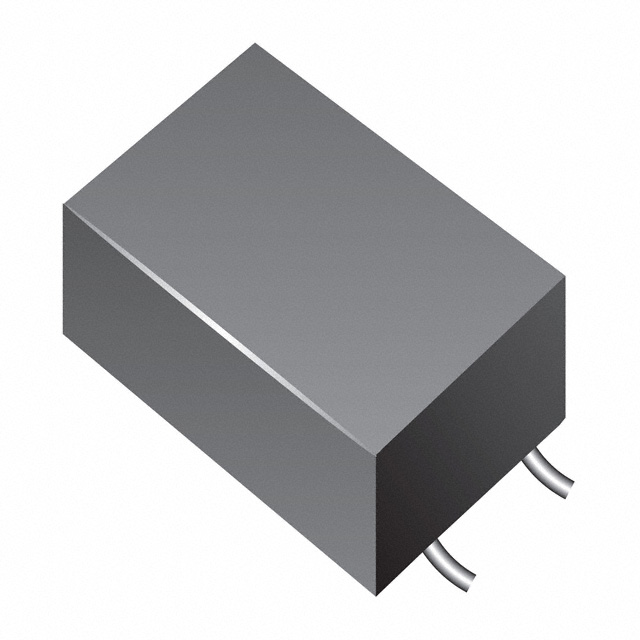

DR221-113AE
ActiveBourns Inc.
CMC 11UH 250MA 2LN SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
DR221-113AE
ActiveBourns Inc.
CMC 11UH 250MA 2LN SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | DR221-113AE |
|---|---|
| Current Rating (Max) [Max] | 250 mA |
| DC Resistance (DCR) (Max) [Max] | 180 mOhm |
| Height (Max) | 3.3 mm |
| Height (Max) [Max] [z] | 0.13 in |
| Inductance @ Frequency | 11 µH |
| Mounting Type | Surface Mount |
| Number of Lines | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Horizontal, 4 Flat Lead |
| Size / Dimension [x] | 0.197 in |
| Size / Dimension [x] | 5 mm |
| Size / Dimension [y] | 0.13 in |
| Size / Dimension [y] | 3.3 mm |
| Voltage Rating - AC | 100 V |
| Voltage Rating - DC | 50 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.34 | |
| 10 | $ 1.13 | |||
| 25 | $ 1.03 | |||
| 50 | $ 0.97 | |||
| 100 | $ 0.80 | |||
| 250 | $ 0.74 | |||
| Digi-Reel® | 1 | $ 1.34 | ||
| 10 | $ 1.13 | |||
| 25 | $ 1.03 | |||
| 50 | $ 0.97 | |||
| 100 | $ 0.80 | |||
| 250 | $ 0.74 | |||
| Tape & Reel (TR) | 500 | $ 0.70 | ||
| 1000 | $ 0.64 | |||
| 2500 | $ 0.62 | |||
| 5000 | $ 0.60 | |||
| 12500 | $ 0.58 | |||
Description
General part information
DR221 Series
11 µH @ 10 kHz 2 Line Common Mode Choke Surface Mount 250mA DCR 180mOhm
