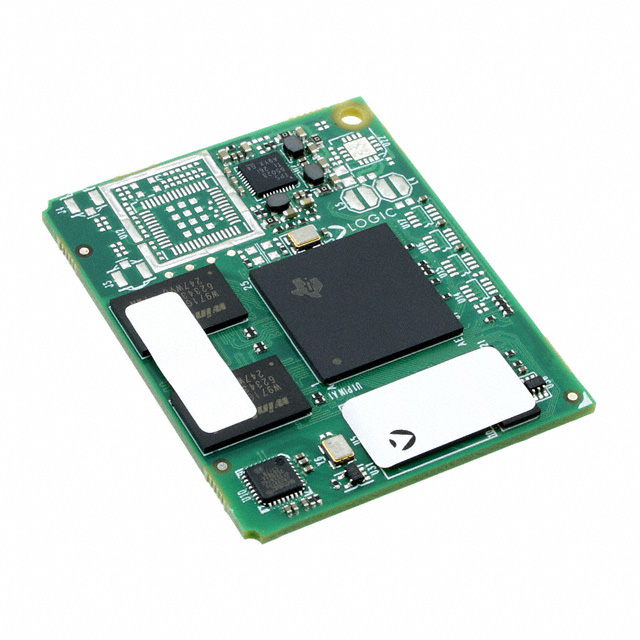

SOMAM3517-10-1780FJIR

Active

Beacon EmbeddedWorks

IC MOD CORTEX-A8 600MHZ 256MB

Search across all available documentation for this part.

Active

Beacon EmbeddedWorks

IC MOD CORTEX-A8 600MHZ 256MB

Technical Specifications

Parameters and characteristics commom to parts in this series

IC MOD CORTEX-A8 600MHZ 256MB

Part	Module/Board Type	Operating Temperature [Max]	Operating Temperature [Min]	RAM Size	Core Processor	Connector Type	Speed	Flash Size	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]
Beacon EmbeddedWorks SOMAM3517-10-1780FJCR	MPU Core	70 °C	0 °C	256 MB	ARM® Cortex®-A8, AM3517	Board-to-Board (BTB) Socket - 300	600 MHz	512 MB	51.2 mm	40.9 mm	1.61 "	2.02 "
Beacon EmbeddedWorks SOMAM3517-10-1780FJIR	MPU Core	85 °C	-40 °C	256 MB	ARM® Cortex®-A8, AM3517	Board-to-Board (BTB) Socket - 300	600 MHz	512 MB	51.2 mm	40.9 mm	1.61 "	2.02 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

AM35x Embedded Module ARM® Cortex®-A8, AM3517 600MHz 256MB 512MB
