142249-75

Active

Amphenol RF

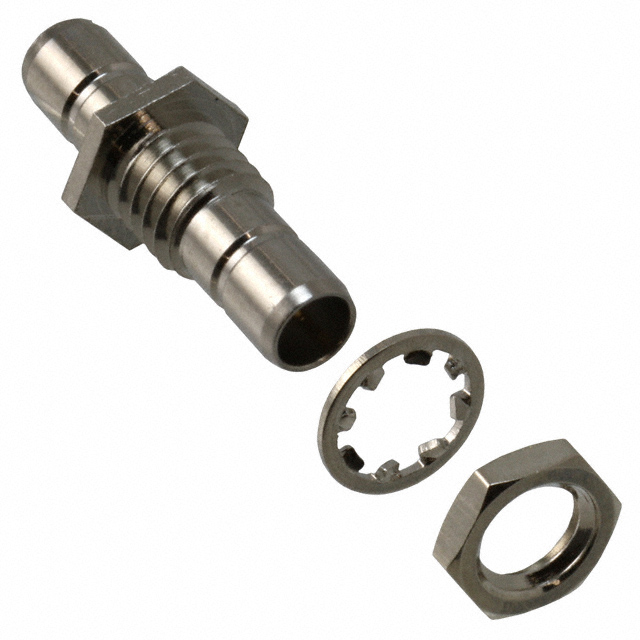

RF / COAXIAL ADAPTER, SMB, JACK, SMB, JACK, STRAIGHT BULKHEAD ADAPTER, 75 OHM

Search across all available documentation for this part.

Active

Amphenol RF

RF / COAXIAL ADAPTER, SMB, JACK, SMB, JACK, STRAIGHT BULKHEAD ADAPTER, 75 OHM

Technical Specifications

Parameters and characteristics for this part

Specification	142249-75

Adapter Series	SMB Mini to SMB Mini
Adapter Type	Jack to Jack
Body Finish	Nickel
Body Material	Brass
Center Contact Material	Brass
Center Contact Plating	Gold
Center Gender	Male to Male
Conversion Type	Same Series
Convert From (Adapter End)	SMB Mini Jack, Male Pin
Convert To (Adapter End)	Male Pin, SMB Mini Jack
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	4 GHz
Impedance	75 Ohms
Includes	1 Nut, 1 Connector, 1 Lockwasher
Mounting Feature	Bulkhead
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Style	Straight

Part	Body Material	Convert From (Adapter End)	Conversion Type	Center Contact Material	Convert To (Adapter End)	Center Contact Plating	Adapter Series	Center Gender	Style	Mounting Feature	Body Finish	Dielectric Material	Includes	Fastening Type	Adapter Type	Frequency - Max [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Impedance
Amphenol RF 142249-75	Brass	SMB Mini Jack Male Pin	Same Series	Brass	Male Pin SMB Mini Jack	Gold	SMB Mini to SMB Mini	Male to Male	Straight	Bulkhead	Nickel	Polytetrafluoroethylene (PTFE)	1 Connector 1 Lockwasher 1 Nut	Snap-On	Jack to Jack	4 GHz	-65 ░C	165 °C	75 Ohms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector SMB Mini Jack, Male Pin To SMB Mini Jack, Male Pin 75 Ohms
