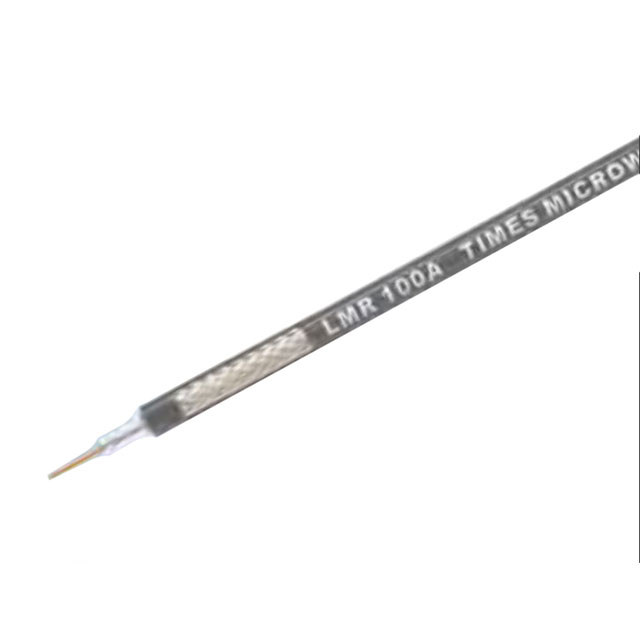

LMR-100A-PVC

Active

Amphenol Times Microwave Systems

INDR CBLE, BLK PVC JACKET FOOT

Search across all available documentation for this part.

Active

Amphenol Times Microwave Systems

INDR CBLE, BLK PVC JACKET FOOT

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	LMR-100A-PVC	LMR-100 Series

Cable Group	-	LMR-100
Cable Type	Coaxial	Coaxial
Conductor Material	Steel, Copper Coated	Steel, Copper Coated, Steel Covered, Copper, Bare
Conductor Strand	Solid	Solid
Dielectric Diameter [diameter]	1.52 mm	1.52 mm
Dielectric Diameter [diameter]	0.06 in	0.06 in
Features	-	Fire Retardant
Impedance	50 Ohms	50 Ohms
Jacket (Insulation) Diameter [diameter]	2.79 mm	2.79 mm
Jacket (Insulation) Diameter [diameter]	0.11 in	0.11 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC), Polyurethane (PU), Polyethylene (PE), Thermoplastic Elastomer (TPE)
Jacket Color	Black	Black
Length	Enter Number of Feet in Order Quantity	Enter Number of Feet in Order Quantity
Length	-	1 ft
Length	-	300 mm
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Shield Material	Copper, Tinned, Aluminum	Copper, Tinned, Aluminum
Shield Type	Braid	Braid
Spool Size	500 '	500 '
Spool Size	152.4 m	152.4 m

INDOOR CABLE, WHT PVC JKT FOOT

Part	Dielectric Diameter [diameter]	Dielectric Diameter [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Shield Type	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Impedance	Jacket (Insulation) Material	Cable Type	Conductor Strand	Conductor Material	Length	Spool Size	Spool Size	Shield Material	Jacket Color	Features	Length [x]	Length [x]	Cable Group
Amphenol Times Microwave Systems LMR-100A-PVC-W	1.52 mm	0.06 in	85 °C	-40 °C	Braid	2.79 mm	0.11 in	50 Ohms	Poly-Vinyl Chloride (PVC)	Coaxial	Solid	Copper Coated, Steel	Enter Number of Feet in Order Quantity	500 '	152.4 m	Aluminum, Copper, Tinned
Amphenol Times Microwave Systems LMR-100A-PUR	1.52 mm	0.06 in	85 °C	-40 °C	Braid	2.79 mm	0.11 in	50 Ohms	Polyurethane (PU)	Coaxial	Solid	Copper Coated, Steel				Aluminum, Copper, Tinned	Black
Amphenol Times Microwave Systems LMR-100A-PVC	1.52 mm	0.06 in	85 °C	-40 °C	Braid	2.79 mm	0.11 in	50 Ohms	Poly-Vinyl Chloride (PVC)	Coaxial	Solid	Copper Coated, Steel	Enter Number of Feet in Order Quantity	500 '	152.4 m	Aluminum, Copper, Tinned	Black
Amphenol Times Microwave Systems LMR-100A-FR	1.52 mm	0.06 in	85 °C	-40 °C	Braid	2.79 mm	0.11 in	50 Ohms	Polyethylene (PE)	Coaxial	Solid	Copper Coated, Steel	Enter Number of Feet in Order Quantity	500 '	152.4 m	Aluminum, Copper, Tinned	Black	Fire Retardant
Amphenol Times Microwave Systems LMR-100A-UF	1.52 mm	0.06 in	85 °C	-40 °C	Braid	2.79 mm	0.11 in	50 Ohms	Thermoplastic Elastomer (TPE)	Coaxial	Solid	Copper Coated, Copper, Bare, Steel, Steel Covered				Aluminum, Copper, Tinned	Black		1 ft	300 mm	LMR-100

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Coaxial Cable Enter Number of Feet in Order Quantity 50 Ohms
