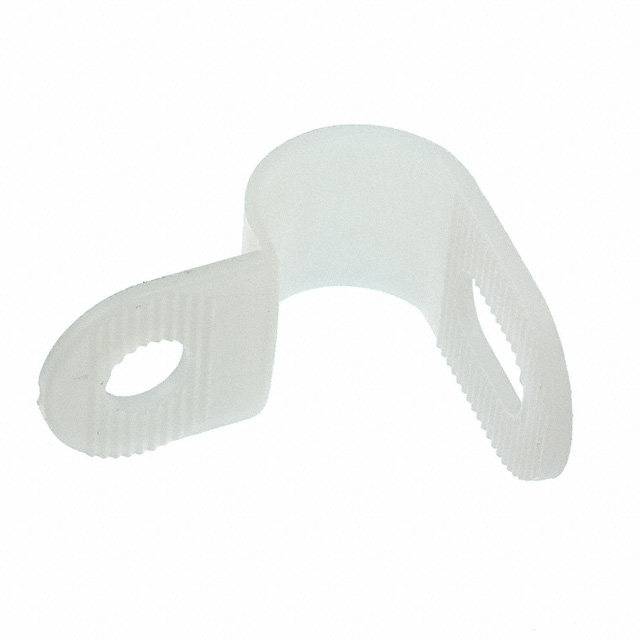

CCLA010A

Obsolete

Essentra Access Solutions

ADJUSTABLE SCREW MOUNT LOOP CLAM

Search across all available documentation for this part.

Obsolete

Essentra Access Solutions

ADJUSTABLE SCREW MOUNT LOOP CLAM

Technical Specifications

Parameters and characteristics for this part

Specification	CCLA010A

Color	Natural
Length	0.925 in
Length	23.5 mm
Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-2
Mounting Type	Fastener
Opening Size [Max]	6.4 mm
Opening Size [Max] [custom]	0.252 in
Opening Size [Min]	4.8 mm
Opening Size [Min] [custom]	0.189 in
Panel Hole Size [diameter]	0.197 in
Panel Hole Size [diameter]	5 mm
Screw Size	M5
Screw Size	#10
Type	Clamp, P-Type
Type Attributes	Adjustable
Width [x]	13 mm
Width [x]	0.512 in

Part	Type	Screw Size	Screw Size	Width [x]	Width [x]	Opening Size [Min]	Opening Size [Max]	Opening Size [Max] [custom]	Opening Size [Min] [custom]	Type Attributes	Mounting Type	Material Flammability Rating	Color	Length	Length	Material	Panel Hole Size [diameter]	Panel Hole Size [diameter]
Essentra Access Solutions CCLA010A	Clamp P-Type	M5	#10	13 mm	0.512 in	4.8 mm	6.4 mm	0.252 in	0.189 in	Adjustable	Fastener	UL94 V-2	Natural	0.925 in	23.5 mm	Polyamide (PA66) Nylon 6/6	0.197 in	5 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Cable Clamp, P-Type Natural Fastener 0.189" ~ 0.252" (4.80mm ~ 6.40mm)
