1003-1551-002

Active

Radiall USA, Inc.

SMC / STRAIGHT JACK MALE CLAMP T

Search across all available documentation for this part.

Active

Radiall USA, Inc.

SMC / STRAIGHT JACK MALE CLAMP T

Technical Specifications

Parameters and characteristics for this part

Specification	1003-1551-002

Body Finish	Gold
Body Material	Brass
Cable Group	196
Cable Group	RG-178
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	SMC
Connector Type	Male Pin, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	10 GHz
Housing Color	Gold
Impedance	50 Ohms
Insertion Loss	0.25 dB
Mating Cycles	500
Mounting Feature	Bulkhead - Front Side Nut
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Clamp
Voltage Rating	250 VDC

SMC / STRAIGHT JACK MALE CLAMP T

Part	Insertion Loss	Mounting Feature	Center Contact Plating	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Center Contact Material	Frequency - Max [Max]	Number of Ports	Impedance	Dielectric Material	Body Material	Housing Color	Cable Group	Cable Group	Mating Cycles	Contact Termination	Shield Termination	Connector Type	Body Finish	Connector Style
Radiall USA, Inc. 1003-1551-002	0.25 dB	Bulkhead - Front Side Nut	Gold	250 VDC	-65 ░C	165 °C	Brass	10 GHz	1	50 Ohms	Polytetrafluoroethylene (PTFE)	Brass	Gold	196	RG-178	500	Solder	Clamp	Jack, Male Pin	Gold	SMC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 20.62

General part information

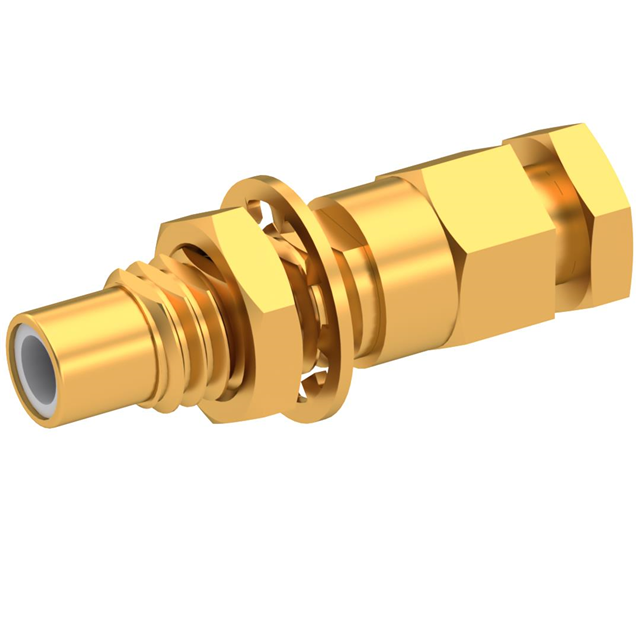

SMC Connector Jack, Male Pin 50 Ohms Panel Mount Solder
