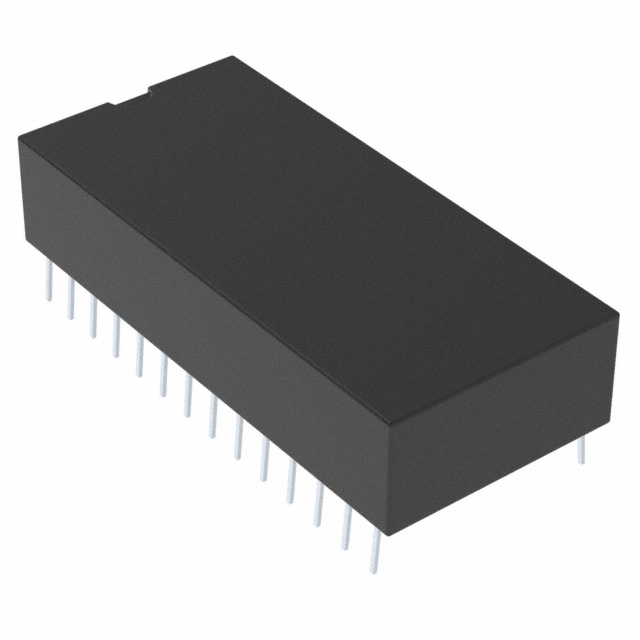

M48T59Y-70PC1

Obsolete

STMicroelectronics

IC RTC CLK/CALENDAR PAR 28DIP

Search across all available documentation for this part.

Obsolete

STMicroelectronics

IC RTC CLK/CALENDAR PAR 28DIP

Technical Specifications

Parameters and characteristics for this part

Specification	M48T59Y-70PC1

Current - Timekeeping (Max)	3 mA
Features	Watchdog Timer, Alarm, Leap Year
Interface	Parallel
Mounting Type	Through Hole
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	0 °C
Package / Case	0.6 in
Package / Case	28-DIP Module
Package / Case	15.24 mm
Supplier Device Package	28-PCDIP, CAPHAT®
Time Format	HH:MM:SS (24 hr)
Type	Clock/Calendar
Voltage - Supply [Max]	5.5 V
Voltage - Supply [Min]	4.5 V

Part	Voltage - Supply [Min]	Voltage - Supply [Max]	Features	Operating Temperature [Max]	Package / Case	Package / Case	Package / Case	Supplier Device Package	Time Format	Current - Timekeeping (Max)	Interface	Type	Mounting Type
STMicroelectronics M48T59Y-70PC1	4.5 V	5.5 V	Alarm Leap Year Watchdog Timer	70 °C	0.6 in	28-DIP Module	15.24 mm	28-PCDIP CAPHAT®	HH:MM:SS (24 hr)	3 mA	Parallel	Clock/Calendar	Through Hole
STMicroelectronics M48T59Y-70MH1E	4.5 V	5.5 V	Alarm Leap Year Watchdog Timer	70 °C		28-SOP		28-SOH	HH:MM:SS (24 hr)	3 mA	Parallel	Clock/Calendar	Surface Mount
STMicroelectronics M48T59Y-70MH1F	4.5 V	5.5 V	Alarm Leap Year Watchdog Timer	70 °C		28-SOP		28-SOH	HH:MM:SS (24 hr)	3 mA	Parallel	Clock/Calendar	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Real Time Clock (RTC) IC Clock/Calendar Parallel 28-DIP Module (0.600", 15.24mm)
