RASM10S
ActiveSwitchcraft Inc.

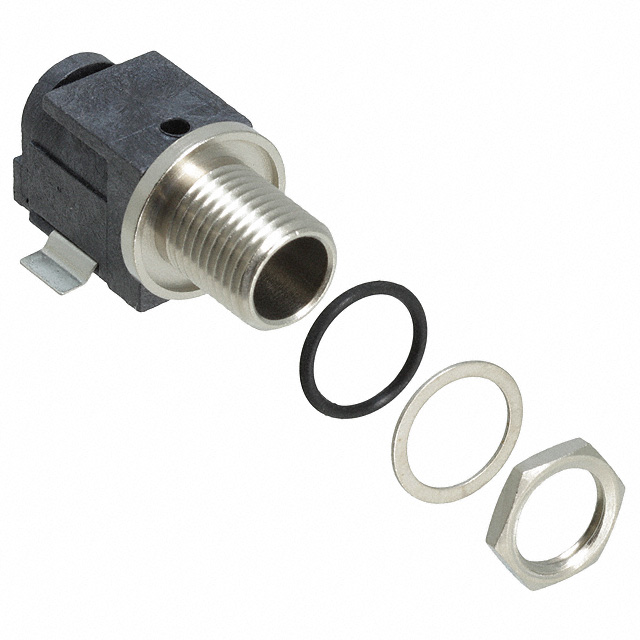

CONN PWR JACK 2X5.5MM SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RASM10S
ActiveSwitchcraft Inc.
CONN PWR JACK 2X5.5MM SOLDER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | RASM10S | RASM10 Series |
|---|---|---|
| Actual Diameter [diameter] | 0.252 ", 0.079 in | 0.079 - 0.252 " |
| Actual Diameter [diameter] | 2 mm, 6.4 mm | 2 - 6.4 mm |
| Body Color | Black | Black |
| Connector Type | Jack | Jack |
| Contact Material | Copper Alloy | Copper Alloy |
| Contact Material - Plating [custom] | Silver | Silver |
| Current Rating (Amps) | 11 A | 11 A |
| Features | - | Board Guide |
| Gender | Male | Male |
| Housing Material | Thermoplastic | Thermoplastic |
| Includes | 1 Washer, 1 O-Ring, 1 Nut, 1 Connector | 1 Washer, 1 O-Ring, 1 Nut, 1 Connector, Connector, Washer, Nut |
| Industry Recognized Mating Diameter [diameter] | 0.079 in, 0.217 " | 0.079 - 0.217 in |
| Industry Recognized Mating Diameter [diameter] | 2 mm, 5.5 mm | 2 - 5.5 mm |
| Ingress Protection | IP68 | IP68 |
| Internal Switch(s) | Single Switch, Normally Closed | Single Switch, Normally Closed |
| Mounting Feature | Bulkhead - Front Side Nut | Bulkhead - Front Side Nut |
| Mounting Type | Surface Mount | Surface Mount |
| Number of Positions/Contacts | 3 Conductors, 2 Conductors | 2 - 3 Conductors |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Shielding | Unshielded | Unshielded |
| Termination | Solder | Solder |
| Thread Size | 5/16"-32 | 5/16"-32 |
| Voltage - Rated | 24 VDC | 24 VDC |
RASM10 Series
CONN PWR JACK 2X5.5MM SOLDER
| Part | Internal Switch(s) | Mounting Feature | Operating Temperature [Min] | Operating Temperature [Max] | Housing Material | Thread Size | Current Rating (Amps) | Includes | Mounting Type | Ingress Protection | Industry Recognized Mating Diameter [diameter] | Industry Recognized Mating Diameter [diameter] | Contact Material - Plating [custom] | Shielding | Actual Diameter [diameter] | Actual Diameter [diameter] | Connector Type | Voltage - Rated | Termination | Body Color | Gender | Contact Material | Number of Positions/Contacts | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Switchcraft Inc. RASM10S | Normally Closed, Single Switch | Bulkhead - Front Side Nut | -40 °C | 105 ░C | Thermoplastic | 5/16"-32 | 11 A | 1 Connector, 1 Nut, 1 O-Ring, 1 Washer | Surface Mount | IP68 | 0.079 in, 0.217 " | 2 mm, 5.5 mm | Silver | Unshielded | 0.079 in, 0.252 " | 2 mm, 6.4 mm | Jack | 24 VDC | Solder | Black | Male | Copper Alloy | 2 Conductors, 3 Conductors | |
Switchcraft Inc. RASM10P | Normally Closed, Single Switch | Bulkhead - Front Side Nut | -40 °C | 105 ░C | Thermoplastic | 5/16"-32 | 11 A | Connector, Nut, Washer | Surface Mount | 0.079 in, 0.217 " | 2 mm, 5.5 mm | Silver | Unshielded | 0.079 in, 0.252 " | 2 mm, 6.4 mm | Jack | 24 VDC | Solder | Black | Male | Copper Alloy | 2 Conductors, 3 Conductors | Board Guide |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 100 | $ 5.44 | |
Description
General part information
RASM10 Series
Power Barrel Connector Jack 2.00mm ID (0.079"), 5.50mm OD (0.217") Surface Mount
Documents
Technical documentation and resources
