RASM10P

Active

Switchcraft Inc.

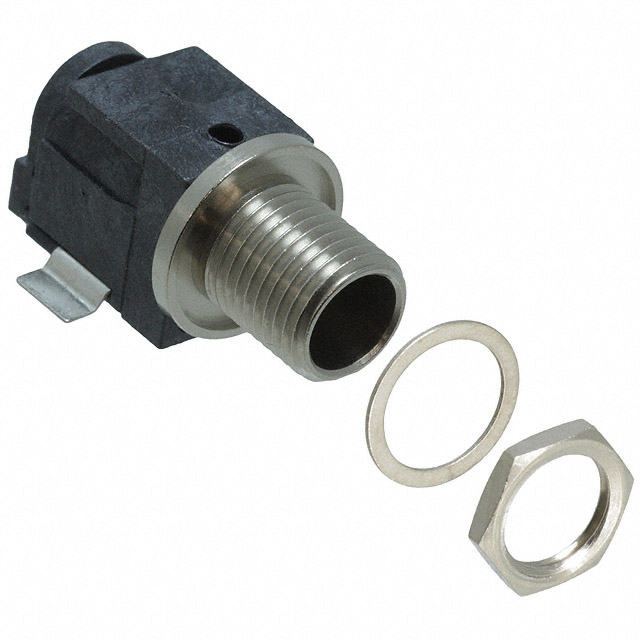

DC POWER CONNECTORS 11A SMT POWER JACK W

Search across all available documentation for this part.

Active

Switchcraft Inc.

DC POWER CONNECTORS 11A SMT POWER JACK W

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	RASM10P	RASM10 Series

Actual Diameter [diameter]	0.252 ", 0.079 in	0.079 - 0.252 "
Actual Diameter [diameter]	2 mm, 6.4 mm	2 - 6.4 mm
Body Color	Black	Black
Connector Type	Jack	Jack
Contact Material	Copper Alloy	Copper Alloy
Contact Material - Plating [custom]	Silver	Silver
Current Rating (Amps)	11 A	11 A
Features	Board Guide	Board Guide
Gender	Male	Male
Housing Material	Thermoplastic	Thermoplastic
Includes	Connector, Washer, Nut	1 Washer, 1 O-Ring, 1 Nut, 1 Connector, Connector, Washer, Nut
Industry Recognized Mating Diameter [diameter]	0.079 in, 0.217 "	0.079 - 0.217 in
Industry Recognized Mating Diameter [diameter]	2 mm, 5.5 mm	2 - 5.5 mm
Ingress Protection	-	IP68
Internal Switch(s)	Single Switch, Normally Closed	Single Switch, Normally Closed
Mounting Feature	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut
Mounting Type	Surface Mount	Surface Mount
Number of Positions/Contacts	3 Conductors, 2 Conductors	2 - 3 Conductors
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-40 °C	-40 °C
Shielding	Unshielded	Unshielded
Termination	Solder	Solder
Thread Size	5/16"-32	5/16"-32
Voltage - Rated	24 VDC	24 VDC

CONN PWR JACK 2X5.5MM SOLDER

Part	Internal Switch(s)	Mounting Feature	Operating Temperature [Min]	Operating Temperature [Max]	Housing Material	Thread Size	Current Rating (Amps)	Includes	Mounting Type	Ingress Protection	Industry Recognized Mating Diameter [diameter]	Industry Recognized Mating Diameter [diameter]	Contact Material - Plating [custom]	Shielding	Actual Diameter [diameter]	Actual Diameter [diameter]	Connector Type	Voltage - Rated	Termination	Body Color	Gender	Contact Material	Number of Positions/Contacts	Features
Switchcraft Inc. RASM10S	Normally Closed, Single Switch	Bulkhead - Front Side Nut	-40 °C	105 ░C	Thermoplastic	5/16"-32	11 A	1 Connector, 1 Nut, 1 O-Ring, 1 Washer	Surface Mount	IP68	0.079 in, 0.217 "	2 mm, 5.5 mm	Silver	Unshielded	0.079 in, 0.252 "	2 mm, 6.4 mm	Jack	24 VDC	Solder	Black	Male	Copper Alloy	2 Conductors, 3 Conductors
Switchcraft Inc. RASM10P	Normally Closed, Single Switch	Bulkhead - Front Side Nut	-40 °C	105 ░C	Thermoplastic	5/16"-32	11 A	Connector, Nut, Washer	Surface Mount		0.079 in, 0.217 "	2 mm, 5.5 mm	Silver	Unshielded	0.079 in, 0.252 "	2 mm, 6.4 mm	Jack	24 VDC	Solder	Black	Male	Copper Alloy	2 Conductors, 3 Conductors	Board Guide

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Barrel Connector Jack 2.00mm ID (0.079"), 5.50mm OD (0.217") Surface Mount
