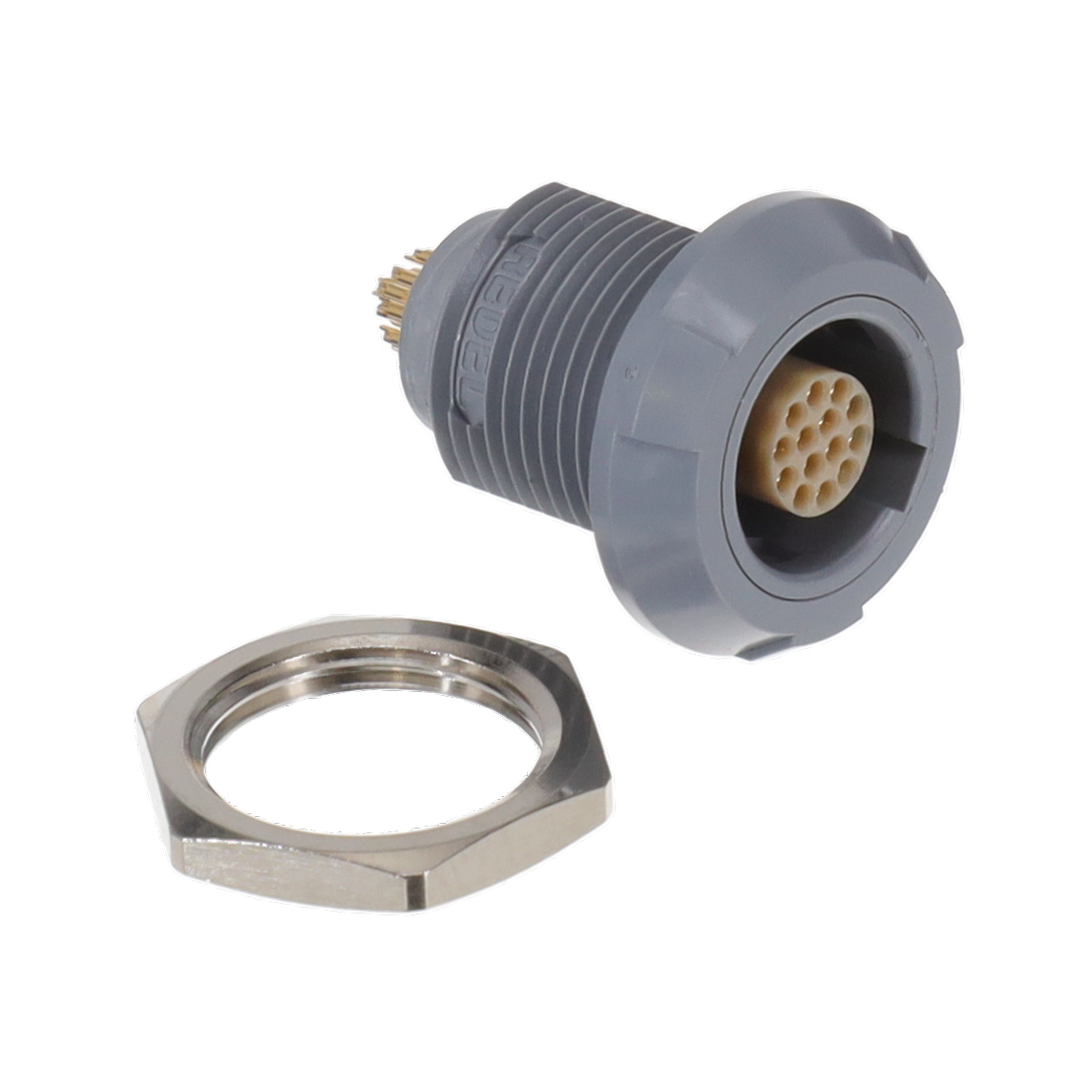

PLG.M1.4SL.LG
ActiveLEMO
CONN RCPT FMALE 14P SOLDER CUP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PLG.M1.4SL.LG
ActiveLEMO
CONN RCPT FMALE 14P SOLDER CUP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | PLG.M1.4SL.LG | PLG.M1 Series |
|---|---|---|
| Applications | Medical, Industrial, Automotive, Testing Equipment & Measurement | Medical, Industrial, Automotive, Testing Equipment & Measurement |
| Color | Gray | Gray, Blue, Black |
| Connector Type | Receptacle, Female Sockets | Receptacle, Female Sockets, Female Sockets, Insert |
| Contact Finish - Mating | Gold | Gold |
| Current Rating (Amps) | 2 A | 2 - 3 A |
| Fastening Type | Detent Lock, Push-Pull | Detent Lock, Push-Pull |
| Features | - | Insert Only, Requires Shell |
| Ingress Protection | IP50 | IP50 |
| Insert Material | Polyetheretherketone (PEEK) | Polyetheretherketone (PEEK) |
| Mounting Feature | Bulkhead - Rear Side Nut | Bulkhead - Rear Side Nut |
| Number of Positions | 14 | 10 - 14 |
| Operating Temperature [Max] | 170 °C | 170 °C |
| Operating Temperature [Min] | -50 °C | -50 °C |
| Orientation | G | G |
| Primary Material | Plastic | Plastic |
| Shell Material | Polyetherimide (PEI) | Polyetherimide (PEI) |
| Shell Size - Insert | M14 | M14, M10 |
| Shielding | Unshielded | Unshielded |
PLG.M1 Series
CONN RCPT FMALE 14P SOLDER CUP
| Part | Shielding | Current Rating (Amps) | Ingress Protection | Contact Finish - Mating | Shell Size - Insert | Applications | Fastening Type | Primary Material | Number of Positions | Insert Material | Connector Type | Orientation | Color | Operating Temperature [Min] | Operating Temperature [Max] | Shell Material | Mounting Feature | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LEMO PLG.M1.4SL.LAZ | Unshielded | 2 A | IP50 | Gold | M14 | Automotive, Industrial, Medical, Testing Equipment & Measurement | Detent Lock, Push-Pull | Plastic | 14 | Polyetheretherketone (PEEK) | Receptacle, Female Sockets | G | Blue, Gray | -50 °C | 170 °C | Polyetherimide (PEI) | Bulkhead - Rear Side Nut | |
LEMO PLG.M1.0TL.LN | Unshielded | 3 A | IP50 | Gold | M10 | Automotive, Industrial, Medical, Testing Equipment & Measurement | Detent Lock, Push-Pull | Plastic | 10 | Polyetheretherketone (PEEK) | Receptacle, Female Sockets | G | Black | -50 °C | 170 °C | Polyetherimide (PEI) | Bulkhead - Rear Side Nut | |
LEMO PLG.M1.0ZL.L | Unshielded | 3 A | IP50 | Gold | M10 | Automotive, Industrial, Medical, Testing Equipment & Measurement | 10 | Polyetheretherketone (PEEK) | Female Sockets, Insert | G | Insert Only, Requires Shell | |||||||
LEMO PLG.M1.4SL.LG | Unshielded | 2 A | IP50 | Gold | M14 | Automotive, Industrial, Medical, Testing Equipment & Measurement | Detent Lock, Push-Pull | Plastic | 14 | Polyetheretherketone (PEEK) | Receptacle, Female Sockets | G | Gray | -50 °C | 170 °C | Polyetherimide (PEI) | Bulkhead - Rear Side Nut | |
LEMO PLG.M1.4ZL.L | Unshielded | 2 A | IP50 | Gold | M14 | Automotive, Industrial, Medical, Testing Equipment & Measurement | 14 | Polyetheretherketone (PEEK) | Female Sockets, Insert | G | Insert Only, Requires Shell | |||||||
LEMO PLG.M1.0SL.LG | Unshielded | 3 A | IP50 | Gold | M10 | Automotive, Industrial, Medical, Testing Equipment & Measurement | Detent Lock, Push-Pull | Plastic | 10 | Polyetheretherketone (PEEK) | Receptacle, Female Sockets | G | Gray | -50 °C | 170 °C | Polyetherimide (PEI) | Bulkhead - Rear Side Nut |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 49.47 | |
| 10 | $ 38.30 | |||
| 25 | $ 34.76 | |||
| 50 | $ 32.37 | |||
| 100 | $ 30.20 | |||
| 250 | $ 27.65 | |||
Description
General part information
PLG.M1 Series
14 Position Circular Connector Receptacle, Female Sockets Solder Cup
