PLG.M1.0SL.LG

Active

LEMO

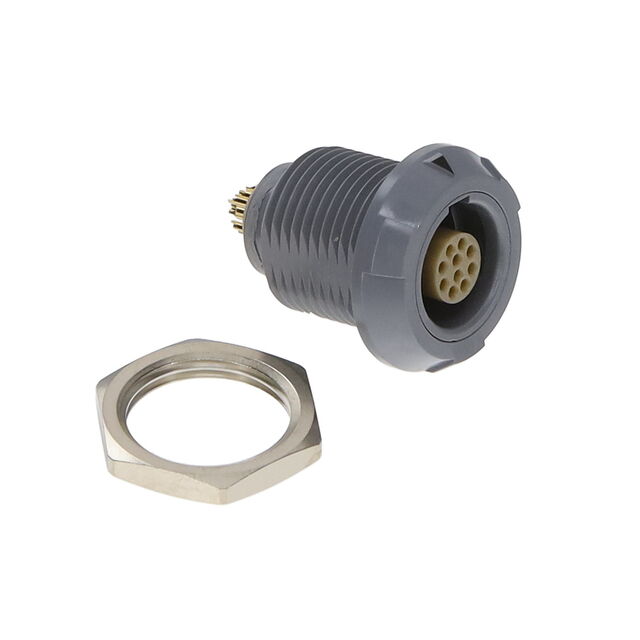

CONN RCPT FMALE 10P SOLDER CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PLG.M1.0SL.LG

Active

LEMO

CONN RCPT FMALE 10P SOLDER CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 36.92
		10	$ 32.33
		25	$ 30.93
		50	$ 29.94
		100	$ 28.94
		250	$ 27.34

Description

General part information

PLG.M1 Series

10 Position Circular Connector Receptacle, Female Sockets Solder Cup

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	PLG.M1.0SL.LG	PLG.M1 Series

Applications	Medical, Industrial, Automotive, Testing Equipment & Measurement	Medical, Industrial, Automotive, Testing Equipment & Measurement
Color	Gray	Gray, Blue, Black
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets, Female Sockets, Insert
Contact Finish - Mating	Gold	Gold
Current Rating (Amps)	3 A	2 - 3 A
Fastening Type	Detent Lock, Push-Pull	Detent Lock, Push-Pull
Features	-	Insert Only, Requires Shell
Ingress Protection	IP50	IP50
Insert Material	Polyetheretherketone (PEEK)	Polyetheretherketone (PEEK)
Mounting Feature	Bulkhead - Rear Side Nut	Bulkhead - Rear Side Nut
Number of Positions	10	10 - 14
Operating Temperature [Max]	170 °C	170 °C
Operating Temperature [Min]	-50 °C	-50 °C
Orientation	G	G
Primary Material	Plastic	Plastic
Shell Material	Polyetherimide (PEI)	Polyetherimide (PEI)
Shell Size - Insert	M10	M14, M10
Shielding	Unshielded	Unshielded

PLG.M1 Series

CONN RCPT FMALE 14P SOLDER CUP

Part	Shielding	Current Rating (Amps)	Ingress Protection	Contact Finish - Mating	Shell Size - Insert	Applications	Fastening Type	Primary Material	Number of Positions	Insert Material	Connector Type	Orientation	Color	Operating Temperature [Min]	Operating Temperature [Max]	Shell Material	Mounting Feature	Features
LEMO PLG.M1.4SL.LAZ	Unshielded	2 A	IP50	Gold	M14	Automotive, Industrial, Medical, Testing Equipment & Measurement	Detent Lock, Push-Pull	Plastic	14	Polyetheretherketone (PEEK)	Receptacle, Female Sockets	G	Blue, Gray	-50 °C	170 °C	Polyetherimide (PEI)	Bulkhead - Rear Side Nut
LEMO PLG.M1.0TL.LN	Unshielded	3 A	IP50	Gold	M10	Automotive, Industrial, Medical, Testing Equipment & Measurement	Detent Lock, Push-Pull	Plastic	10	Polyetheretherketone (PEEK)	Receptacle, Female Sockets	G	Black	-50 °C	170 °C	Polyetherimide (PEI)	Bulkhead - Rear Side Nut
LEMO PLG.M1.0ZL.L	Unshielded	3 A	IP50	Gold	M10	Automotive, Industrial, Medical, Testing Equipment & Measurement			10	Polyetheretherketone (PEEK)	Female Sockets, Insert	G						Insert Only, Requires Shell
LEMO PLG.M1.4SL.LG	Unshielded	2 A	IP50	Gold	M14	Automotive, Industrial, Medical, Testing Equipment & Measurement	Detent Lock, Push-Pull	Plastic	14	Polyetheretherketone (PEEK)	Receptacle, Female Sockets	G	Gray	-50 °C	170 °C	Polyetherimide (PEI)	Bulkhead - Rear Side Nut
LEMO PLG.M1.4ZL.L	Unshielded	2 A	IP50	Gold	M14	Automotive, Industrial, Medical, Testing Equipment & Measurement			14	Polyetheretherketone (PEEK)	Female Sockets, Insert	G						Insert Only, Requires Shell
LEMO PLG.M1.0SL.LG	Unshielded	3 A	IP50	Gold	M10	Automotive, Industrial, Medical, Testing Equipment & Measurement	Detent Lock, Push-Pull	Plastic	10	Polyetheretherketone (PEEK)	Receptacle, Female Sockets	G	Gray	-50 °C	170 °C	Polyetherimide (PEI)	Bulkhead - Rear Side Nut
