AO3160

Obsolete

Alpha & Omega Semiconductor Inc.

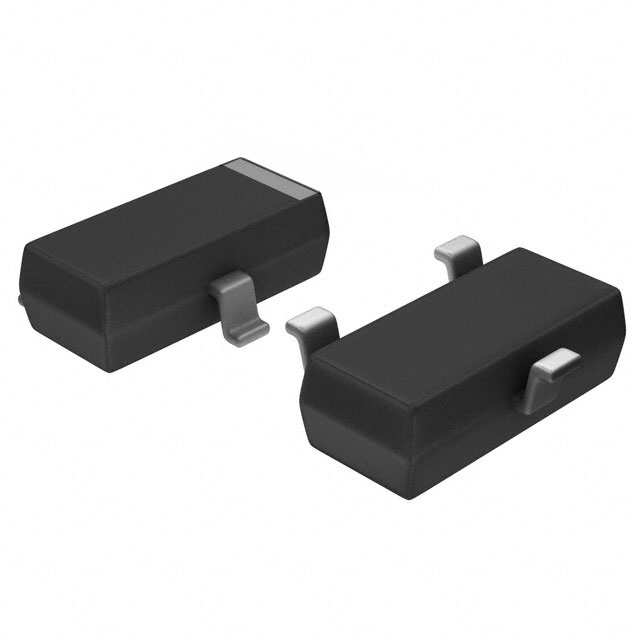

MOSFET N-CH 600V 40MA SOT23-3

Search across all available documentation for this part.

Obsolete

Alpha & Omega Semiconductor Inc.

MOSFET N-CH 600V 40MA SOT23-3

Technical Specifications

Parameters and characteristics for this part

Specification	AO3160

Current - Continuous Drain (Id) @ 25°C	40 mA
Drain to Source Voltage (Vdss)	600 V
Drive Voltage (Max Rds On, Min Rds On)	10 V, 4.5 V
FET Type	N-Channel
Gate Charge (Qg) (Max) @ Vgs	1.5 nC
Input Capacitance (Ciss) (Max) @ Vds	15 pF
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Package / Case	SOT-23-3, TO-236-3, SC-59
Rds On (Max) @ Id, Vgs	500 Ohm
Supplier Device Package	SOT-23A-3
Technology	MOSFET (Metal Oxide)
Vgs (Max)	20 V
Vgs(th) (Max) @ Id	3.2 V

MOSFET N-CH 600V 40MA SOT23-3

Part	Input Capacitance (Ciss) (Max) @ Vds	Rds On (Max) @ Id, Vgs	Gate Charge (Qg) (Max) @ Vgs	Drain to Source Voltage (Vdss)	FET Type	Technology	Current - Continuous Drain (Id) @ 25°C	Supplier Device Package	Operating Temperature [Min]	Operating Temperature [Max]	Drive Voltage (Max Rds On, Min Rds On)	Vgs (Max)	Vgs(th) (Max) @ Id	Package / Case	Mounting Type
Alpha & Omega Semiconductor Inc. AO3160	15 pF	500 Ohm	1.5 nC	600 V	N-Channel	MOSFET (Metal Oxide)	40 mA	SOT-23A-3	-55 °C	150 °C	4.5 V, 10 V	20 V	3.2 V	SC-59, SOT-23-3, TO-236-3	Surface Mount
