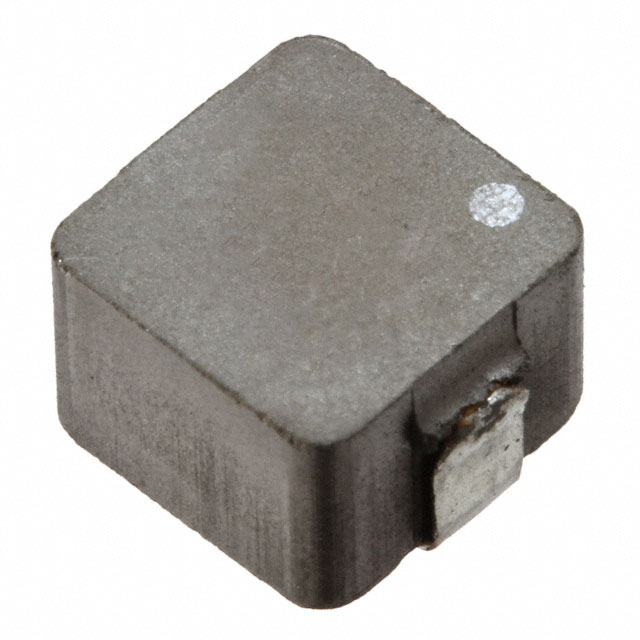

MPC0750LR60C - MPC0750LR60C

MPC0750LR60C

Active
KEMET

FIXED IND 600NH 17A 2.3 MOHM SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetManufacturer Catalogue EN+1
MPC0750LR60C - MPC0750LR60C

MPC0750LR60C

Active
KEMET

FIXED IND 600NH 17A 2.3 MOHM SMD

Deep-Dive with AI

DocumentsDatasheetManufacturer Catalogue EN+1

Technical Specifications

Parameters and characteristics for this part

SpecificationMPC0750LR60C
Current - Saturation (Isat)19 A
Current Rating (Amps)17 A
DC Resistance (DCR) [Max]2.3 mOhm
Height - Seated (Max) [Max] [z]0.197 in
Height - Seated (Max) [Max] [z]5 mm
Inductance600 nH
Inductance Frequency - Test100 kHz
Material - CoreFerrite
Mounting TypeSurface Mount
Operating Temperature [Max]120 °C
Operating Temperature [Min]-20 C
Package / Case2-SMD, J-Lead
ShieldingShielded
Size / Dimension [x]8 mm
Size / Dimension [x]0.315 "
Size / Dimension [y]6.7 mm
Size / Dimension [y]0.264 in
Tolerance20 %

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyCut Tape (CT) 1$ 1.81
10$ 1.49
100$ 1.22
Digi-Reel® 1$ 1.81
10$ 1.49
100$ 1.22
Tape & Reel (TR) 1000$ 1.01
2000$ 0.95
3000$ 0.92
5000$ 0.91
NewarkEach (Supplied on Full Reel) 2000$ 1.11
4000$ 1.01
6000$ 0.97
10000$ 0.93

Description

General part information

MPC0750 Series

600 nH Shielded Inductor 17 A 2.3mOhm Max 2-SMD, J-Lead
