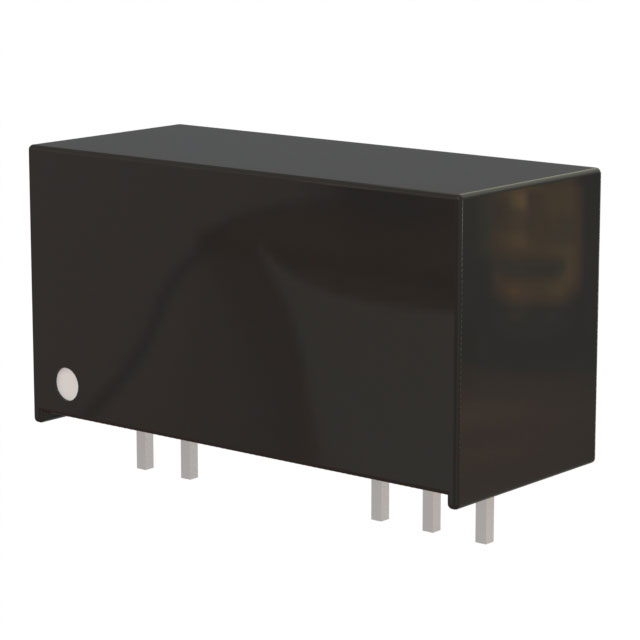

IMM0205S3V3
ActiveXP POWER
DC DC CONVERTER 3.3V 2W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
IMM0205S3V3
ActiveXP POWER
DC DC CONVERTER 3.3V 2W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | IMM0205S3V3 |
|---|---|
| Applications | Medical |
| Control Features | Active High, Enable |
| Current - Output (Max) [Max] | 606 mA |
| Efficiency | 79 % |
| Features | OVP, OCP, Remote On/Off, SCP |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -20 C |
| Package / Case | 5 Leads |
| Package / Case | 8-SIP Module |
| Power (Watts) | 2 W |
| Size / Dimension [x] | 21.8 mm |
| Size / Dimension [x] | 0.86 in |
| Size / Dimension [y] | 0.36 " |
| Size / Dimension [y] | 9.2 mm |
| Size / Dimension [z] | 0.44 " |
| Size / Dimension [z] | 11.1 mm |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 9 V |
| Voltage - Input (Min) [Min] | 4.5 V |
| Voltage - Isolation | 1.5 kV |
| Voltage - Output 1 | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 14.00 | |
| 5 | $ 13.58 | |||
| 10 | $ 13.16 | |||
| 25 | $ 12.60 | |||
| 100 | $ 11.76 | |||
Description
General part information
IMM0205 Series
Isolated Module DC DC Converter 1 Output 3.3V 606mA 4.5V - 9V Input
