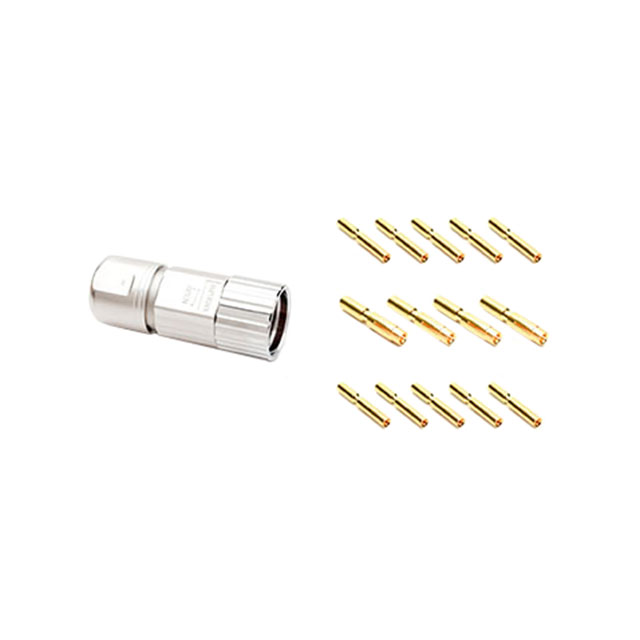

MB7CKN0900-S3-KIT

Active

Amphenol Sine Systems Corp

CONN PLUG FMALE 9POS GOLD CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet MotionGrade

MB7CKN0900-S3-KIT

Active

Amphenol Sine Systems Corp

CONN PLUG FMALE 9POS GOLD CRIMP

Deep-Dive with AI

DocumentsDatasheet MotionGrade

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MB7CKN0900-S3-KIT

Color	Silver
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Current Rating (Amps)	10 A, 30 A
Features	Coupling Nut, Backshell
Ingress Protection	IP67 - Dust Tight, Waterproof
Mounting Type	Free Hanging (In-Line)
Number of Positions [custom]	4
Number of Positions [custom]	9
Number of Positions [custom]	4
Number of Positions [custom]	1
Operating Temperature [Max]	130 °C
Operating Temperature [Min]	-20 C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Zinc Die Cast
Shell Size - Insert	M23-9
Shielding	Shielded
Termination	Crimp
Voltage Rating	250 VAC

MB7CKN0900 Series

Part	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]	Shell Size - Insert	Type	Contact Shape	Ingress Protection	Insert Material	Connector Type	Contact Type	Shell Finish	Mounting Type	Shielding	Material Flammability Rating	Note	Shell Material	Orientation	Operating Temperature [Min]	Operating Temperature [Max]	Features	Contact Size [custom]	Contact Size [custom]	Housing Color	Color	Termination	Contact Finish - Mating	Primary Material	Current Rating (Amps)	Voltage Rating
Amphenol Sine Systems Corp MB7CKN0900-S1	4	9	4	1	M23-9	For Female Sockets	Circular	IP67 - Dust Tight Waterproof	Polyamide (PA66) Nylon 6/6	Plug Housing	Crimp	Nickel	Free Hanging (In-Line)	Shielded	UL94 V-0	Contacts Not Included	Zinc Die Cast	Keyed	-20 C	130 °C	Backshell Coupling Nut	2 mm	1 mm	Silver
Amphenol Sine Systems Corp MB7CKN0900-S3	4	9	4	1	M23-9	For Female Sockets	Circular	IP67 - Dust Tight Waterproof	Polyamide (PA66) Nylon 6/6	Plug Housing	Crimp	Nickel	Free Hanging (In-Line)	Shielded	UL94 V-0	Contacts Not Included	Zinc Die Cast	Keyed	-20 C	130 °C	Backshell Coupling Nut	2 mm	1 mm	Silver
Amphenol Sine Systems Corp MB7CKN0900-S3-KIT	4	9	4	1	M23-9			IP67 - Dust Tight Waterproof		Female Sockets Plug		Nickel	Free Hanging (In-Line)	Shielded			Zinc Die Cast	Keyed	-20 C	130 °C	Backshell Coupling Nut				Silver	Crimp	Gold	Metal	10 A 30 A	250 VAC
Amphenol Sine Systems Corp MB7CKN0900-S2-KIT	4	9	4	1	M23-9			IP67 - Dust Tight Waterproof		Female Sockets Plug		Nickel	Free Hanging (In-Line)	Shielded			Zinc Die Cast	Keyed	-20 C	130 °C	Backshell Coupling Nut				Silver	Crimp	Gold	Metal	10 A 30 A	250 VAC
Amphenol Sine Systems Corp MB7CKN0900-S2	4	9	4	1	M23-9	For Female Sockets	Circular	IP67 - Dust Tight Waterproof	Polyamide (PA66) Nylon 6/6	Plug Housing	Crimp	Nickel	Free Hanging (In-Line)	Shielded	UL94 V-0	Contacts Not Included	Zinc Die Cast	Keyed	-20 C	130 °C	Backshell Coupling Nut	2 mm	1 mm	Silver

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 55.92
		10	$ 47.53
		25	$ 44.56
		30	$ 43.27
		50	$ 42.43
		100	$ 40.41
		250	$ 38.55

Description

General part information

MB7CKN0900 Series

9 (4 + 4 Power + PE) Position Circular Connector Plug, Female Sockets Crimp
