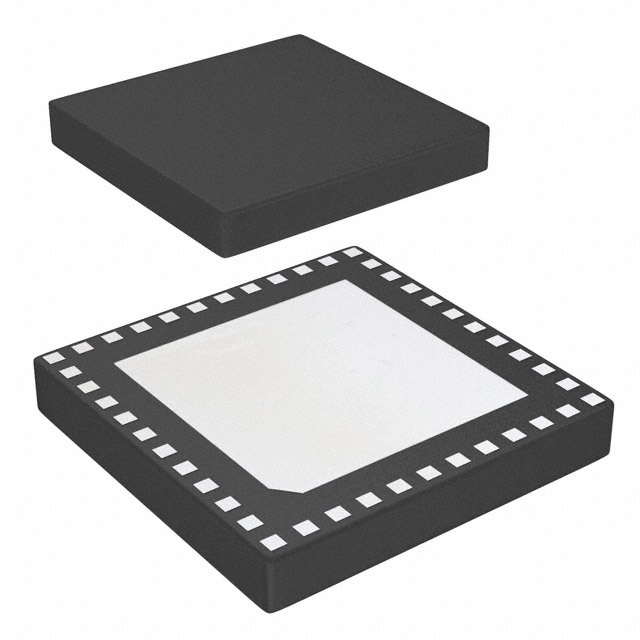

DSPIC33FJ32MC104T-E/TL
ActiveMicrochip Technology
IC MCU 16BIT 32KB FLASH 44VTLA
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
DSPIC33FJ32MC104T-E/TL
ActiveMicrochip Technology
IC MCU 16BIT 32KB FLASH 44VTLA
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | DSPIC33FJ32MC104T-E/TL | DSPIC33FJ32MC104 Series |
|---|---|---|
| - | - | |
| Connectivity | LINbus, I2C, IrDA, SPI, UART/USART | LINbus, I2C, IrDA, SPI, UART/USART |
| Core Processor | dsPIC | dsPIC |
| Core Size | 16-Bit | 16-Bit |
| Data Converters [custom] | 10 b | 10 b |
| Data Converters [custom] | 14 | 14 |
| Grade | Automotive | Automotive |
| Mounting Type | Surface Mount | Surface Mount |
| Number of I/O | 35 | 35 |
| Operating Temperature [Max] | 125 °C | 85 - 125 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Oscillator Type | Internal | Internal |
| Package / Case | 44-VFTLA Exposed Pad | 44-VFTLA Exposed Pad, 44-TQFP, 44-VQFN Exposed Pad |
| Peripherals | WDT, Motor Control PWM, Brown-out Detect/Reset, POR, PWM | WDT, Motor Control PWM, Brown-out Detect/Reset, POR, PWM |
| Program Memory Type | FLASH | FLASH |
| Qualification | AEC-Q100 | AEC-Q100 |
| RAM Size | 1 K | 1 K |
| Speed | 16 MIPs | 16 MIPs |
| Supplier Device Package | 44-VTLA (6x6) | 44-VTLA (6x6), 44-TQFP (10x10), 44-QFN (8x8) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
DSPIC33FJ32MC104 Series
Ultra low cost,high performance Motor Control
| Part | Program Memory Type | Core Size | Grade | Oscillator Type | Qualification | RAM Size | Data Converters [custom] | Data Converters [custom] | Number of I/O | Package / Case | Connectivity | Peripherals | Operating Temperature [Min] | Operating Temperature [Max] | Supplier Device Package | Mounting Type | Speed | Core Processor |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Microchip Technology DSPIC33FJ32MC104T-E/TL | FLASH | 16-Bit | Automotive | Internal | AEC-Q100 | 1 K | 10 b | 14 | 35 | 44-VFTLA Exposed Pad | I2C, IrDA, LINbus, SPI, UART/USART | Brown-out Detect/Reset, Motor Control PWM, POR, PWM, WDT | -40 °C | 125 °C | 44-VTLA (6x6) | Surface Mount | 16 MIPs | dsPIC |
Microchip Technology DSPIC33FJ32MC104-I/PT | ||||||||||||||||||
Microchip Technology DSPIC33FJ32MC104-I/PT | FLASH | 16-Bit | Internal | 1 K | 10 b | 14 | 35 | 44-TQFP | I2C, IrDA, LINbus, SPI, UART/USART | Brown-out Detect/Reset, Motor Control PWM, POR, PWM, WDT | -40 °C | 85 °C | 44-TQFP (10x10) | Surface Mount | 16 MIPs | dsPIC | ||
Microchip Technology DSPIC33FJ32MC104T-E/ML | FLASH | 16-Bit | Automotive | Internal | AEC-Q100 | 1 K | 10 b | 14 | 35 | 44-VQFN Exposed Pad | I2C, IrDA, LINbus, SPI, UART/USART | Brown-out Detect/Reset, Motor Control PWM, POR, PWM, WDT | -40 °C | 125 °C | 44-QFN (8x8) | Surface Mount | 16 MIPs | dsPIC |
Microchip Technology DSPIC33FJ32MC104-I/ML | FLASH | 16-Bit | Internal | 1 K | 10 b | 14 | 35 | 44-VQFN Exposed Pad | I2C, IrDA, LINbus, SPI, UART/USART | Brown-out Detect/Reset, Motor Control PWM, POR, PWM, WDT | -40 °C | 85 °C | 44-QFN (8x8) | Surface Mount | 16 MIPs | dsPIC |
Description
General part information
DSPIC33FJ32MC104 Series
An
ultra low cost, high performance 16-bit motor control family of digital signal
controllers featuring CTMU, MCPWMs, PPS and other advanced peripherals with low
