1218441-1

Active

TE Connectivity Aerospace, Defense and Marine

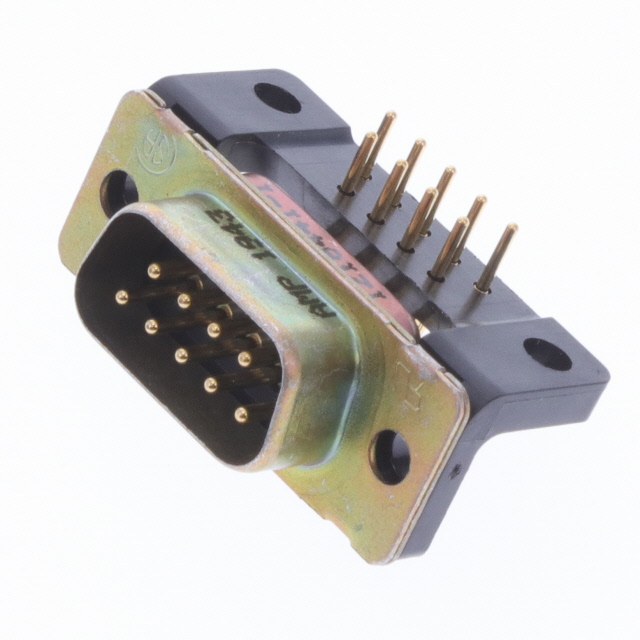

CONN D-SUB PLUG 9POS R/A SLDR

Search across all available documentation for this part.

Active

TE Connectivity Aerospace, Defense and Marine

CONN D-SUB PLUG 9POS R/A SLDR

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1218441-1	1218441 Series

Backset Spacing	8.08 mm	8.08 mm
Backset Spacing	0.318 "	0.318 "
Color	Black	Black
Connector Style	D-Sub	D-Sub
Connector Type	Plug, Male Pins	Plug, Male Pins
Contact Finish	Gold	Gold
Contact Finish Thickness	10 Áin	10 Áin
Contact Finish Thickness	0.25 Ám	0.25 Ám
Contact Material	Brass	Brass
Contact Type	Signal	Signal
Current Rating (Amps)	5 A	5 A
Flange Feature	Housing/Shell (Unthreaded)	Housing/Shell (Unthreaded)
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle
Number of Positions	9	9
Number of Rows	2	2
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-55 °C	-55 °C
Shell Material, Finish [custom]	Steel	Steel
Shell Material, Finish [custom]	Cadmium Plated	Cadmium Plated
Shell Size, Connector Layout [custom]	DE, E	DB, B, DE, E
Shell Size, Connector Layout [custom]	1	1 - 3
Termination	Solder	Solder

CONN D-SUB PLUG 25POS R/A SLDR

Part	Mounting Type	Backset Spacing	Backset Spacing	Contact Finish Thickness	Contact Finish Thickness	Current Rating (Amps)	Number of Rows	Contact Finish	Contact Type	Connector Type	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Contact Material	Shell Material, Finish [custom]	Shell Material, Finish [custom]	Termination	Connector Style	Operating Temperature [Min]	Operating Temperature [Max]	Color	Flange Feature	Number of Positions
TE Connectivity Aerospace, Defense and Marine 1218441-3	Through Hole, Right Angle	8.08 mm	0.318 "	10 Áin	0.25 Ám	5 A	2	Gold	Signal	Male Pins, Plug	B, DB	3	Brass	Steel	Cadmium Plated	Solder	D-Sub	-55 °C	125 °C	Black	Housing/Shell (Unthreaded)
TE Connectivity Aerospace, Defense and Marine 1218441-1	Through Hole, Right Angle	8.08 mm	0.318 "	10 Áin	0.25 Ám	5 A	2	Gold	Signal	Male Pins, Plug	DE, E	1	Brass	Steel	Cadmium Plated	Solder	D-Sub	-55 °C	125 °C	Black	Housing/Shell (Unthreaded)	9

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

9 Position D-Sub Plug, Male Pins Connector
