2102-1-00-44-00-00-07-0
ActiveMill-Max Manufacturing Corp.

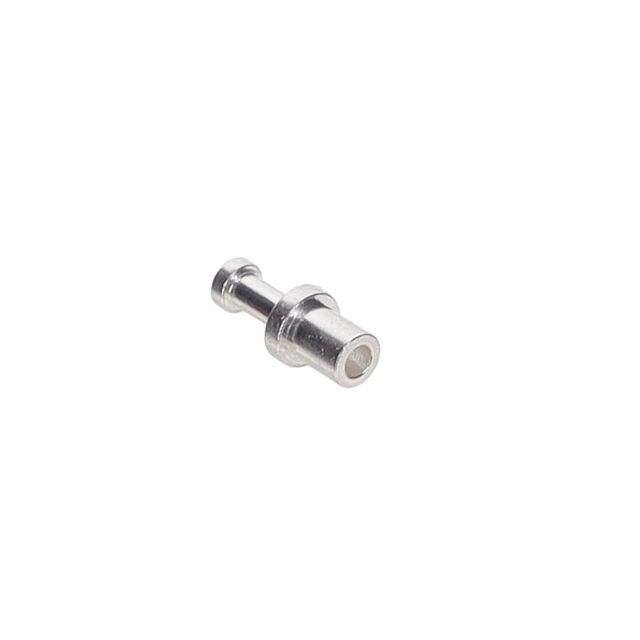

TERM TURRET SINGLE L=2.39MM
Deep-Dive with AI
Search across all available documentation for this part.
2102-1-00-44-00-00-07-0
ActiveMill-Max Manufacturing Corp.
TERM TURRET SINGLE L=2.39MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 2102-1-00-44-00-00-07-0 |
|---|---|
| Board Thickness | 0.031 in |
| Board Thickness | 0.79 mm |
| Contact Finish | Silver |
| Contact Finish Thickness | 300 µin |
| Contact Finish Thickness | 7.62 µm |
| Contact Material | Brass Alloy |
| Diameter - Turret Head [diameter] | 0.041 in |
| Diameter - Turret Head [diameter] | 1.04 mm |
| Flange Diameter [diameter] | 0.064 in |
| Flange Diameter [diameter] | 1.63 mm |
| Insulation | Non-Insulated |
| Length - Above Board [x] | 0.094 in |
| Length - Above Board [x] | 2.39 mm |
| Length - Below Flange [x] | 0.054 in |
| Length - Below Flange [x] | 1.37 mm |
| Length - Overall [x] | 3.76 mm |
| Length - Overall [x] | 0.148 in |
| Mounting Hole Diameter [diameter] | 1.32 mm |
| Mounting Hole Diameter [diameter] | 0.052 in |
| Mounting Type | Through Hole |
| Number of Turrets | Single |
| Staking Side ID [diameter] | 0.028 in |
| Staking Side ID [diameter] | 0.71 mm |
| Staking Side OD [diameter] | 1.19 mm |
| Staking Side OD [diameter] | 0.047 " |
| Terminal Type | Single End |
| Termination | Swage |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.73 | |
| 10 | $ 0.62 | |||
| 100 | $ 0.56 | |||
| 1000 | $ 0.40 | |||
| 5000 | $ 0.35 | |||
| 10000 | $ 0.34 | |||
Description
General part information
2102-1 Series
Terminal Turret Connector Single End 0.094" (2.39mm) Silver
Documents
Technical documentation and resources
No documents available
