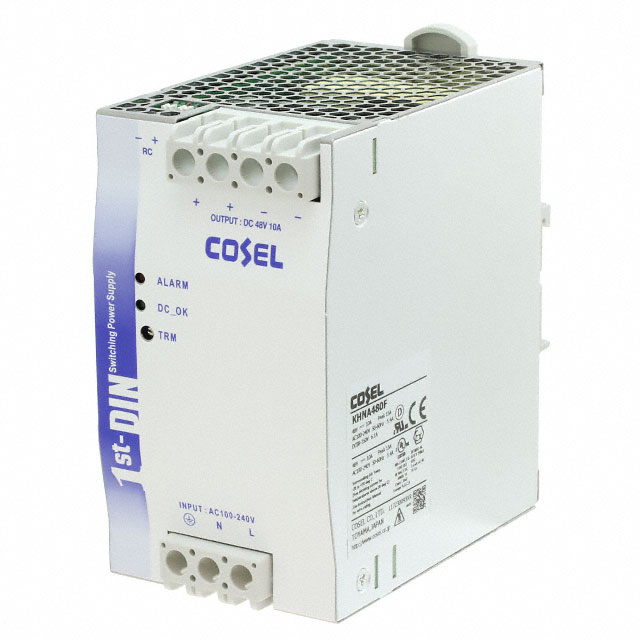

KHNA480F-48

Active

Cosel USA, Inc.

AC/DC DIN RAIL SUPPLY 48V 480W

Search across all available documentation for this part.

Active

Cosel USA, Inc.

AC/DC DIN RAIL SUPPLY 48V 480W

Technical Specifications

Parameters and characteristics for this part

Specification	KHNA480F-48

AC Voltage - Input [Max]	264 VAC
AC Voltage - Input [Min]	85 VAC
Applications	ITE (Commercial)
Approval Agency	TUV, CE, cULus, cURus
Current - Output (Max) [Max]	10 A
DC Voltage - Input (Max) [Max]	370 V
DC Voltage - Input (Min) [Min]	120 V
Efficiency	94 %
Features	PFC, Remote On/Off, Universal Input, Adjustable Output
Input Type	AC or DC
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 C
Power (Watts)	480 W
Size / Dimension [x]	121.2 mm
Size / Dimension [x]	4.77 in
Size / Dimension [y]	1.97 "
Size / Dimension [y]	50 mm
Size / Dimension [z]	4.88 "
Size / Dimension [z]	124 mm
Standard Number	60950-1
Voltage - Isolation	3000 V
Voltage - Output 1	48 V

Part	Current - Output (Max) [Max]	Number of Outputs	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Voltage - Output 1	Applications	AC Voltage - Input [Min]	AC Voltage - Input [Max]	Features	Approval Agency	Power (Watts)	Voltage - Isolation	Operating Temperature [Min]	Operating Temperature [Max]	DC Voltage - Input (Max) [Max]	Input Type	DC Voltage - Input (Min) [Min]	Efficiency	Standard Number
Cosel USA, Inc. KHNA480F-48	10 A	1	121.2 mm	4.77 in	4.88 "	124 mm	1.97 "	50 mm	48 V	ITE (Commercial)	85 VAC	264 VAC	Adjustable Output PFC Remote On/Off Universal Input	CE cULus cURus TUV	480 W	3000 V	-20 C	70 °C	370 V	AC or DC	120 V	94 %	60950-1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

AC/DC DIN RAIL SUPPLY 48V 480W
