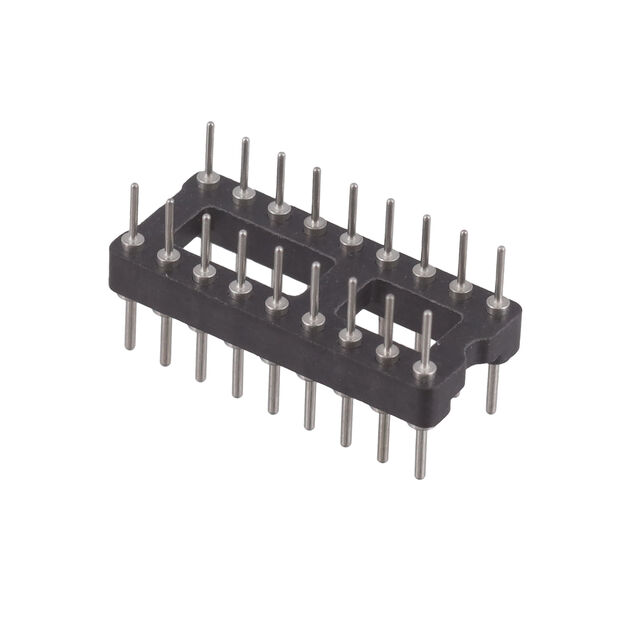

150-40-318-00-001000

Active

Mill-Max Manufacturing Corp.

CONN HDR DIP POST 18POS TIN-LEAD

Deep-Dive with AI

Search across all available documentation for this part.

150-40-318-00-001000

Active

Mill-Max Manufacturing Corp.

CONN HDR DIP POST 18POS TIN-LEAD

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	150-40-318-00-001000

Color	Black
Connector Type	DIP, DIL - Header
Contact Finish	Tin-Lead
Contact Finish Thickness	200 Áin
Contact Finish Thickness	5.08 Ám
Mounting Type	Through Hole
Number of Positions	18
Number of Rows	2
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Row Spacing	0.3 in
Row Spacing	7.62 mm
Termination	Solder

150-40 Series

Part	Termination	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Row Spacing	Row Spacing	Number of Positions	Contact Finish	Color	Pitch [x]	Pitch [x]	Connector Type	Number of Rows
Mill-Max Manufacturing Corp. 150-40-628-00-001000	Solder	200 Áin	5.08 Ám	Through Hole	0.6 in	15.24 mm	28	Tin-Lead	Black	2.54 mm	0.1 in	DIL - Header DIP	2
Mill-Max Manufacturing Corp. 150-40-432-00-001000	Solder	200 Áin	5.08 Ám	Through Hole	0.4 in	10.16 mm		Tin-Lead	Black	2.54 mm	0.1 in	DIL - Header DIP	2
Mill-Max Manufacturing Corp. 150-40-306-00-001000	Solder	200 Áin	5.08 Ám	Through Hole	0.3 in	7.62 mm	6	Tin-Lead	Black	2.54 mm	0.1 in	DIL - Header DIP	2
Mill-Max Manufacturing Corp. 150-40-422-00-001000	Solder	200 Áin	5.08 Ám	Through Hole	0.4 in	10.16 mm	22 positions	Tin-Lead	Black	2.54 mm	0.1 in	DIL - Header DIP	2
Mill-Max Manufacturing Corp. 150-40-424-00-001000	Solder	200 Áin	5.08 Ám	Through Hole	0.4 in	10.16 mm	24	Tin-Lead	Black	2.54 mm	0.1 in	DIL - Header DIP	2
Mill-Max Manufacturing Corp. 150-40-322-00-001000	Solder	200 Áin	5.08 Ám	Through Hole	0.3 in	7.62 mm	22 positions	Tin-Lead	Black	2.54 mm	0.1 in	DIL - Header DIP	2
Mill-Max Manufacturing Corp. 150-40-950-00-001000	Solder	200 Áin	5.08 Ám	Through Hole	0.9 in	22.86 mm	50	Tin-Lead	Black	2.54 mm	0.1 in	DIL - Header DIP	2
Mill-Max Manufacturing Corp. 150-40-428-00-001000	Solder	200 Áin	5.08 Ám	Through Hole	0.4 in	10.16 mm	28	Tin-Lead	Black	2.54 mm	0.1 in	DIL - Header DIP	2
Mill-Max Manufacturing Corp. 150-40-318-00-001000	Solder	200 Áin	5.08 Ám	Through Hole	0.3 in	7.62 mm	18	Tin-Lead	Black	2.54 mm	0.1 in	DIL - Header DIP	2
Mill-Max Manufacturing Corp. 150-40-210-00-001000	Solder	200 Áin	5.08 Ám	Through Hole	0.2 in	5.08 mm	10	Tin-Lead	Black	2.54 mm	0.1 in	DIL - Header DIP	2

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 17.75
		22	$ 15.38
		110	$ 12.68
		506	$ 11.58

Description

General part information

150-40 Series

18 Position DIP, DIL - Header Connector Post Tin-Lead
