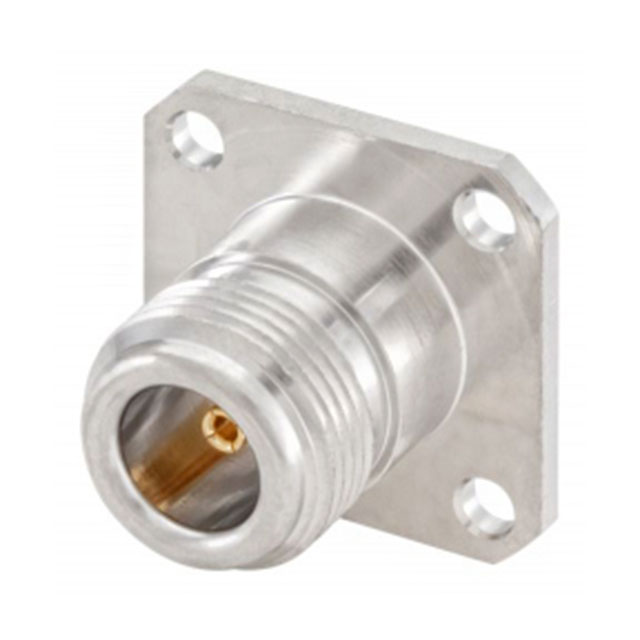

53K405-600N5

Active

Rosenberger

CONN N TYPE JACK ST 50OHM SOLDER

Search across all available documentation for this part.

Active

Rosenberger

CONN N TYPE JACK ST 50OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	53K405-600N5

Body Finish	White Bronze
Body Material	Brass
Center Contact Material	Bronze
Center Contact Plating	Gold
Connector Style	N Type
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	11 GHz
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	500
Mounting Feature	Flange
Number of Ports	1
Shield Termination	Solder
Voltage Rating	500 V

Part	Dielectric Material	Connector Type	Mounting Feature	Body Material	Center Contact Plating	Contact Termination	Impedance	Voltage Rating	Connector Style	Body Finish	Frequency - Max [Max]	Mating Cycles	Number of Ports	Center Contact Material	Shield Termination	Housing Color
Rosenberger 53K405-600N5	Polytetrafluoroethylene (PTFE)	Female Socket Jack	Flange	Brass	Gold	Solder	50 Ohms	500 V	N Type	White Bronze	11 GHz	500	1	Bronze	Solder	Silver

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	125	$ 23.02

General part information

N Type Connector Jack, Female Socket 50 Ohms Panel Mount Solder
