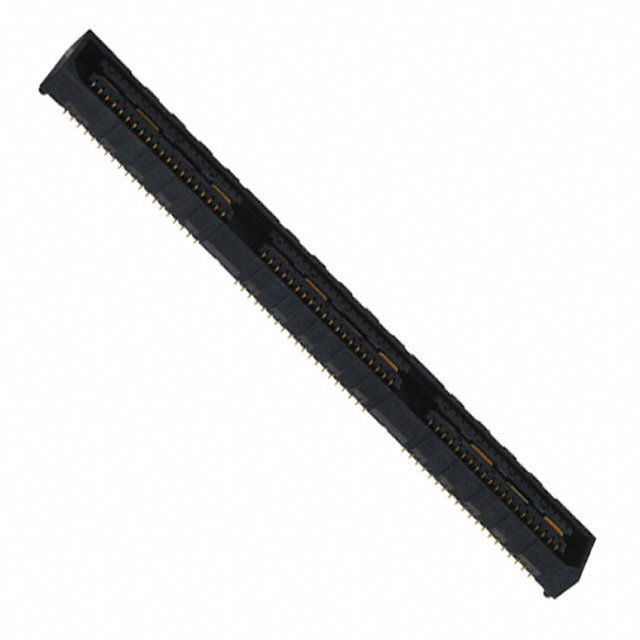

QSE-060-01-L-D-A-K-TR

Active

Samtec Inc.

.8MM DOUBLE ROW MI SOCKET ASSEMBLY ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsQSE Series Other Related Documents 03 0.80 mm Q Strip® High-Speed Ground Plane Socket Strip +2

QSE-060-01-L-D-A-K-TR

Active

Samtec Inc.

.8MM DOUBLE ROW MI SOCKET ASSEMBLY ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsQSE Series Other Related Documents 03 0.80 mm Q Strip® High-Speed Ground Plane Socket Strip +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	QSE-060-01-L-D-A-K-TR

Connector Type	Receptacle, Center Strip Contacts
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Features	Board Guide, Ground Bus (Plane), Pick and Place
Height Above Board	3.25 mm
Height Above Board	0.128 in
Mated Stacking Heights	5 mm, 25 mm, 8 mm, 16 mm, 11 mm, 14 mm, 19 mm
Mounting Type	Surface Mount
Number of Positions	120
Number of Rows	2
Pitch [x]	0.8 mm
Pitch [x]	0.031 in

QSE-060 Series

Part	Contact Finish	Number of Rows	Pitch [x]	Pitch [x]	Mounting Type	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Connector Type	Features	Mated Stacking Heights	Height Above Board	Height Above Board
Samtec Inc. QSE-060-01-H-D-A-RT1	Gold	2	0.8 mm	0.031 in	Surface Mount	120	0.76 Ám	30 Áin	Center Strip Contacts Receptacle	Board Guide Ground Bus (Plane) Mounting Flange	5 mm 8 mm 11 mm 14 mm 16 mm 19 mm 25 mm	3.25 mm	0.128 in
Samtec Inc. QSE-060-01-C-D	Gold	2	0.8 mm	0.031 in	Surface Mount	120	1.27 µm	50 µin	Center Strip Contacts Receptacle	Ground Bus (Plane)	5 mm 8 mm 11 mm 14 mm 16 mm 19 mm 25 mm	3.25 mm	0.128 in
Samtec Inc. QSE-060-01-S-D-EM2-GP	Gold	2	0.8 mm	0.031 in	Board Edge Straddle Mount	120	0.76 Ám	30 Áin	Center Strip Contacts Receptacle	Ground Bus (Plane) Mating Flange
Samtec Inc. QSE-060-01-L-D-A-K-TR	Gold	2	0.8 mm	0.031 in	Surface Mount	120	0.25 Ám	10 Áin	Center Strip Contacts Receptacle	Board Guide Ground Bus (Plane) Pick and Place	5 mm 8 mm 11 mm 14 mm 16 mm 19 mm 25 mm	3.25 mm	0.128 in
Samtec Inc. QSE-060-01-H-D-A-K	Gold	2	0.8 mm	0.031 in	Surface Mount	120	0.76 Ám	30 Áin	Center Strip Contacts Receptacle	Board Guide Ground Bus (Plane) Pick and Place	5 mm 8 mm 11 mm 14 mm 16 mm 19 mm 25 mm	3.25 mm	0.128 in
Samtec Inc. QSE-060-01-F-D-EM2	Gold	2	0.8 mm	0.031 in	Board Edge Straddle Mount	120	0.076 Ám	3 Áin	Center Strip Contacts Receptacle	Ground Bus (Plane)
Samtec Inc. QSE-060-01-F-D-GP	Gold	2	0.8 mm	0.031 in	Surface Mount	120	0.076 Ám	3 Áin	Center Strip Contacts Receptacle	Ground Bus (Plane) Mating Flange	5 mm 8 mm 11 mm 14 mm 16 mm 19 mm 25 mm	3.25 mm	0.128 in
Samtec Inc. QSE-060-01-C-D-K	Gold	2	0.8 mm	0.031 in	Surface Mount	120	1.27 µm	50 µin	Center Strip Contacts Receptacle	Ground Bus (Plane) Pick and Place	5 mm 8 mm 11 mm 14 mm 16 mm 19 mm 25 mm	3.25 mm	0.128 in
Samtec Inc. QSE-060-01-S-D-EM2	Gold	2	0.8 mm	0.031 in	Board Edge Straddle Mount	120	0.76 Ám	30 Áin	Center Strip Contacts Receptacle	Ground Bus (Plane)
Samtec Inc. QSE-060-01-C-D-LC	Gold	2	0.8 mm	0.031 in	Surface Mount	120	1.27 µm	50 µin	Center Strip Contacts Receptacle	Board Lock Ground Bus (Plane)	5 mm 8 mm 11 mm 14 mm 16 mm 19 mm 25 mm	3.25 mm	0.128 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 12.98
		10	$ 11.99
		25	$ 11.34
		50	$ 10.93
		100	$ 8.38
	Tape & Reel (TR)	350	$ 8.38
		700	$ 7.53
		1050	$ 7.19
Newark	Each (Supplied on Cut Tape)	1	$ 9.83
		10	$ 8.82
		25	$ 8.00
		50	$ 7.32
		100	$ 6.75
