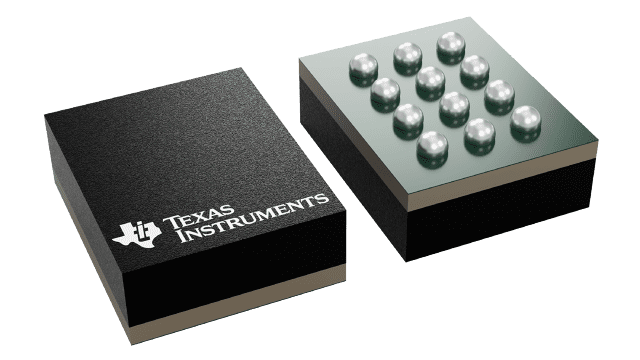

TXS0104ENMNR
ActiveFOUR-BIT BIDIRECTIONAL VOLTAGE-LEVEL SHIFTER FOR OPEN-DRAIN AND PUSH-PULL APPLICATIONS
Deep-Dive with AI
Search across all available documentation for this part.
TXS0104ENMNR
ActiveFOUR-BIT BIDIRECTIONAL VOLTAGE-LEVEL SHIFTER FOR OPEN-DRAIN AND PUSH-PULL APPLICATIONS
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.79 | |
| 10 | $ 1.14 | |||
| 25 | $ 0.97 | |||
| 100 | $ 0.77 | |||
| 250 | $ 0.68 | |||
| 500 | $ 0.62 | |||
| 1000 | $ 0.57 | |||
| Digi-Reel® | 1 | $ 1.79 | ||
| 10 | $ 1.14 | |||
| 25 | $ 0.97 | |||
| 100 | $ 0.77 | |||
| 250 | $ 0.68 | |||
| 500 | $ 0.62 | |||
| 1000 | $ 0.57 | |||
| Tape & Reel (TR) | 2500 | $ 0.41 | ||
| Texas Instruments | LARGE T&R | 1 | $ 0.80 | |
| 100 | $ 0.62 | |||
| 250 | $ 0.45 | |||
| 1000 | $ 0.32 | |||
Description
General part information
TXS0104 Series
This 4-bit non-inverting translator uses two separate configurable power-supply rails. The A port is designed to track V CCA. V CCA accepts any supply voltage from 1.65 V to 3.6 V. V CCA must be less than or equal to V CCB. The B port is designed to track V CCB. V CCB accepts any supply voltage from 2.3 V to 5.5 V. This allows for low-voltage bidirectional translation between any of the 1.8-V, 2.5-V, 3.3-V, and 5-V voltage nodes.
When the output-enable (OE) input is low, all outputs are placed in the high-impedance state.
The TXS0104E is designed so that the OE input circuit is supplied by V CCA.
