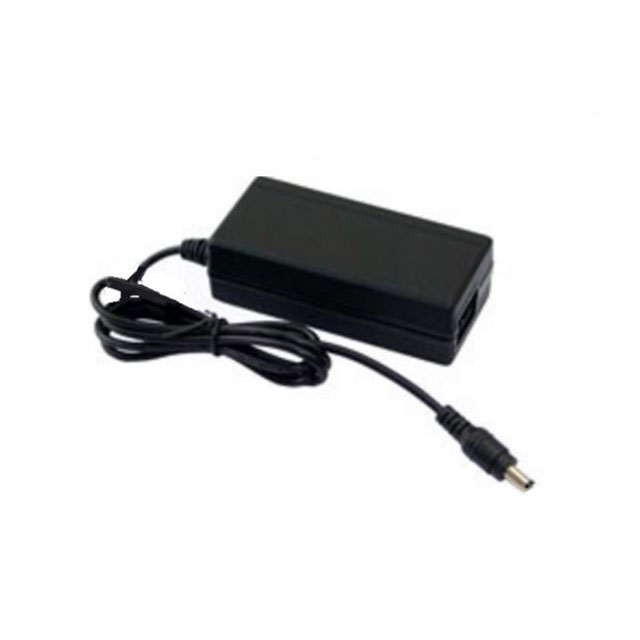

PSAD36BSF-12-B2

Active

TT Electronics/Power Partners Inc.

AC/DC DESKTOP ADAPTER 12V 36W

Search across all available documentation for this part.

Active

TT Electronics/Power Partners Inc.

AC/DC DESKTOP ADAPTER 12V 36W

Technical Specifications

Parameters and characteristics for this part

AC/DC DESKTOP ADAPTER 12V 36W

Part	No Load Power Consumption	Efficiency	Applications	Input Connector	Operating Temperature [Max]	Operating Temperature [Min]	Region Utilized	Current - Output (Max) [Max]	Power (Watts)	Input Type	Form	Standard Number	Cord Length	Cord Length	Output Connector [diameter]	Output Connector [x]	Polarization	Approval Agency	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Voltage - Output	Voltage - Input [Min]	Voltage - Input [Max]
TT Electronics/Power Partners Inc. PSAD36BSF-12-B2	100 mW	Level VI	ITE (Commercial)	IEC 320-C14	60 °C	0 °C	International	3 A	36 W	Cord	Desktop (Class I)	60950-1	47 "	1.2 m	2.5 mm, 5.5 mm	10 mm	Positive Center	CB, CE, cULus, FCC	3.78 "	1.2 "	45.5 mm	96 mm	30.5 mm	1.79 "	12 V	90 VAC	264 VAC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

12V 36 W AC/DC External Desktop (Class I) Adapter Cord (Sold Separately) Input
