LTC4286AUK#TRPBF

Active

Analog Devices

HIGH POWER POSITIVE HOT-SWAP CONTROLLER WITH POWER MONITOR VIA PMBUS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN +3

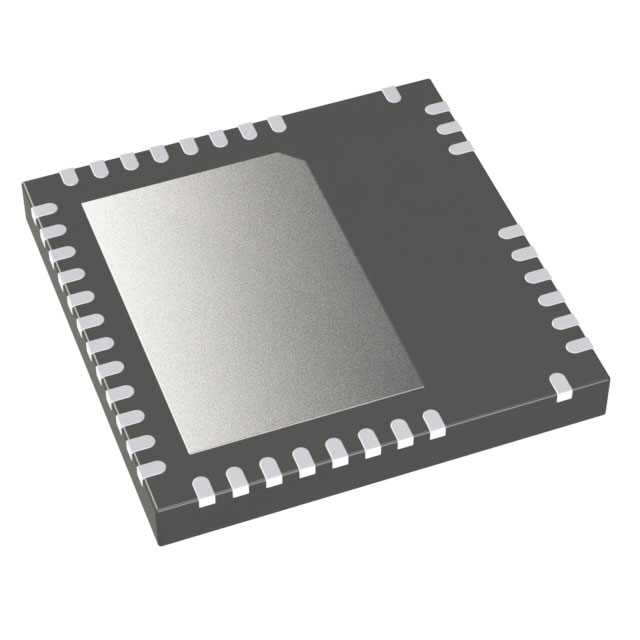

LTC4286AUK#TRPBF

Active

Analog Devices

HIGH POWER POSITIVE HOT-SWAP CONTROLLER WITH POWER MONITOR VIA PMBUS

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN +3

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LTC4286AUK#TRPBF

Applications	General Purpose
Current - Supply	12 mA
Features	Latched Fault, Auto Retry, UVLO, SMBus, Fault Timeout, OVP
Mounting Type	Surface Mount
Number of Channels	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Package / Case	48-WFQFN Exposed Pad, 39 Leads
Programmable Features	Current Limit, Circuit Breaker, UVLO, OVP, Fault Timeout
Supplier Device Package	48-QFN (7x7)
Type	Hot Swap Controller
Voltage - Supply [Max]	80 V
Voltage - Supply [Min]	8.5 V

LTC4286 Series

High Power Positive Hot-Swap Controller with Power Monitor via PMBus

Part	Applications	Current - Supply	Voltage - Supply [Max]	Voltage - Supply [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Supplier Device Package	Number of Channels	Mounting Type	Programmable Features	Features	Type
Analog Devices LTC4286AUK#TRPBF	General Purpose	12 mA	80 V	8.5 V	125 °C	-40 °C	48-WFQFN Exposed Pad 39 Leads	48-QFN (7x7)	1	Surface Mount	Circuit Breaker Current Limit Fault Timeout OVP UVLO	Auto Retry Fault Timeout Latched Fault OVP SMBus UVLO	Hot Swap Controller
Analog Devices LTC4286AUK#PBF	General Purpose	12 mA	80 V	8.5 V	125 °C	-40 °C	48-WFQFN Exposed Pad 39 Leads	48-QFN (7x7)	1	Surface Mount	Circuit Breaker Current Limit Fault Timeout OVP UVLO	Auto Retry Fault Timeout Latched Fault OVP SMBus UVLO	Hot Swap Controller

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	2000	$ 9.61
Newark	Each (Supplied on Cut Tape)	1	$ 17.66
		10	$ 16.24
		25	$ 15.00
		50	$ 13.79
		100	$ 12.58
		250	$ 11.74
		500	$ 11.03
		1000	$ 10.47

Description

General part information

LTC4286 Series

The LTC4286 is an integrated solution for hot-swap applications allowing a board to be safely inserted and removed from a live backplane. The circuit breaker timer protects against metal-oxide semiconductor field-effect transistor (MOSFET) overheating, enabling reliable protection against overstress.The SMBus 3.1 interface, PMBus command structure, and onboard analog-to-digital converter (ADC) with selectable averaging and speed allow monitoring of board current, voltage, power, temperature, and fault status.The LTC4286 has additional features to respond to input undervoltage (UV) and overvoltage (OV): interrupts the host when a fault occurs, notifies when output power is good, detects insertion of a board, and auto-reboot after a programmable delay following a host commanded turn off.APPLICATIONSHigh availability server backplane systems12 V/24 V/48 V/54 V Distributed power systemsIndustrial

Documents

Technical documentation and resources

Datasheet

Technical Data Sheet EN

Datasheet

LTC4286: High Power Positive Hot-Swap Controller with Power Monitor via PMBus Data Sheet (Rev.B)

Data Sheet

UG-2086: Evaluating the LTC4286 High Voltage Positive Hot Swap Controller with Power Monitor and PMBus (Rev.A)

User Guide

Package Drawing - 48(39)-Lead Plastic QFN (7mm × 7mm)

Package Drawing
