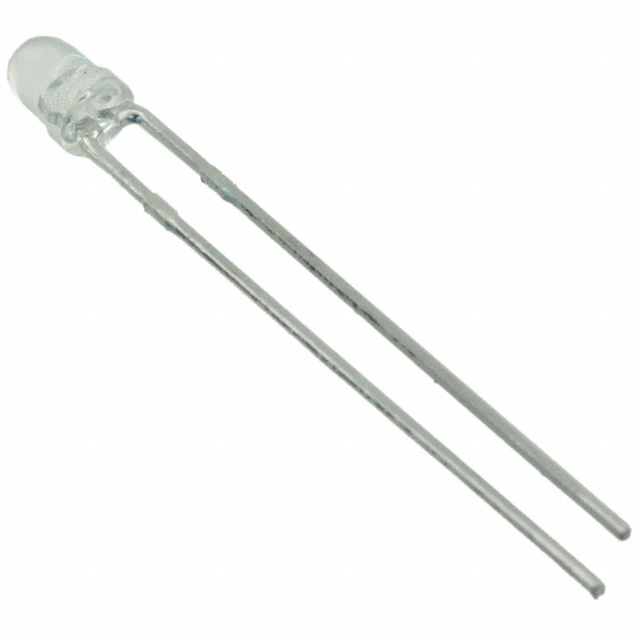

WP7113SF7C

Active

Kingbright

5MM INFRARED EMITTER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

WP7113SF7C

Active

Kingbright

5MM INFRARED EMITTER

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	WP7113SF7C	WP7113 Series

	-	-
Color	-	Red, Cyan, Yellow, Green, Blue, Pink
Color - Enhanced	-	Infrared (NIR)
Configuration	-	Standard, Bidirectional
Current - Dark (Id) (Max)	-	100 nA
Current - Dark (Typ)	-	10 nA
Current - DC Forward (If) (Max) [Max]	50 mA	50 mA
Current - Test	-	2 - 20 mA
Height (Max)	-	6.45 - 9.85 mm
Lens Color	-	Colorless, Red, Yellow, Green, Orange, White
Lens Size	-	T-1 3/4
Lens Size	-	5 mm
Lens Style	-	Round with Domed Top
Lens Transparency	-	Clear, Diffused
Millicandela Rating	-	2 - 19000 mcd
Mounting Type	Through Hole	Through Hole
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Top View	Top View
Package / Case	Radial	Radial
Power - Max	-	100 mW
Radiant Intensity (Ie) Min @ If	50 mW/sr	15 - 50 mW/sr
Radiant Intensity (Ie) Min @ If	-	12 - 55 mW/sr
Response Time	-	6 ns
Size / Dimension	-	2.9 - 5 mm
Spectral Range	-	1070 nm
Spectral Range	-	670 nm
Spectral Range	-	1120 nm
Spectral Range	-	420 nm
Supplier Device Package	-	T-1 3/4, T-1 3/4 (5mm)
Type	Infrared (IR)	Infrared (IR)
Viewing Angle	20 °	16 - 35 °
Voltage - Collector Emitter Breakdown (Max)	-	30 V
Voltage - DC Reverse (Vr) (Max)	-	170 V
Voltage - Forward (Vf) (Typ)	1.4 V	1.3 - 16 V
Voltage - Forward (Vf) (Typ)	-	2.1 V
Voltage - Forward (Vf) (Typ)	-	2.2 V
Wavelength	850 nm	850 - 940 nm
Wavelength - Dominant	-	465 - 640 nm
Wavelength - Peak	-	640 nm
Wavelength - Peak	-	458 - 660 nm
Wavelength - Peak	-	574 nm
Wavelength - Peak	-	640 nm
Wavelength - Peak	-	565 - 655 nm

WP7113 Series

5MM INFRARED EMITTER

...

Part	Operating Temperature [Max]	Operating Temperature [Min]	Current - DC Forward (If) (Max) [Max]	Package / Case	Type	Viewing Angle	Wavelength	Orientation	Mounting Type	Lens Transparency	Supplier Device Package	Voltage - Forward (Vf) (Typ)	Wavelength - Peak [custom]	Lens Style	Size / Dimension [diameter]	Lens Color	Lens Size	Lens Size	Millicandela Rating	Current - Test	Configuration	Height (Max) [Max] [z]	Wavelength - Dominant	Wavelength - Peak	Color	Radiant Intensity (Ie) Min @ If [Min]	Voltage - Collector Emitter Breakdown (Max) [Max]	Current - Dark (Id) (Max) [Max]	Power - Max [Max]	Response Time	Spectral Range [Max] [custom]	Spectral Range [Min] [custom]	Current - Dark (Typ) [Max]	Voltage - DC Reverse (Vr) (Max) [Max]	Color - Enhanced	Spectral Range [Max]	Spectral Range [Min]
Kingbright WP7113F3BT	85 °C	-40 °C	50 mA	Radial	Infrared (IR)	20 °	940 nm	Top View	Through Hole
Kingbright WP7113SEC/J2				Radial		20 °			Through Hole	Clear	T-1 3/4	2.2 V	640 nm	Round with Domed Top	5 mm	Colorless	T-1 3/4	5 mm	12000 mcd	20 mA	Standard	8.6 mm	630 nm
Kingbright WP7113SRD14V				Radial		30 °			Through Hole	Diffused	T-1 3/4			Round with Domed Top	5 mm	Red	T-1 3/4	5 mm	100 mcd	10.5 mA	Standard	8.6 mm	640 nm	655 nm	Red
Kingbright WP7113SF6C	85 °C	-40 °C	50 mA	Radial	Infrared (IR)	20 °	860 nm	Top View	Through Hole			1.35 V														55 mW/sr
Kingbright WP7113P3BT	85 °C	-40 °C		Radial			940 nm	Top View	Through Hole																		30 V	100 nA	100 mW
Kingbright WP7113PD1BT/BD-P22	85 °C	-40 °C		Radial		20 °	940 nm		Through Hole																					6 ns	1070 nm	670 nm	10 nA	170 V
Kingbright WP7113VRCBC/A				Radial		20 °			Through Hole	Clear	T-1 3/4 (5mm)	3.3 V		Round with Domed Top	5 mm	Colorless	T-1 3/4	5 mm	7900 mcd	20 mA	Standard	8.85 mm			Cyan
Kingbright WP7113LSECK/J4				Radial		20 °			Through Hole	Clear	T-1 3/4 (5mm)	1.8 V		Round with Domed Top	5 mm	Colorless	T-1 3/4	5 mm	550 mcd	2 mA	Standard	8.6 mm	605 nm	611 nm
Kingbright WP7113PD1C	85 °C	-40 °C		Radial		20 °	940 nm		Through Hole																					6 ns			10 nA	170 V	Infrared (NIR)	1120 nm	420 nm
Kingbright WP7113SYT				Radial		20 °			Through Hole	Clear	T-1 3/4	2 V		Round with Domed Top	5 mm	Yellow	T-1 3/4	5 mm	3100 mcd	20 mA	Standard	8.6 mm	590 nm	590 nm	Yellow

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.74
		10	$ 0.48
		100	$ 0.32
		1000	$ 0.29

Description

General part information

WP7113 Series

Infrared (IR) Emitter 850nm 1.4V 50mA 50mW/sr @ 50mA 20° Radial
