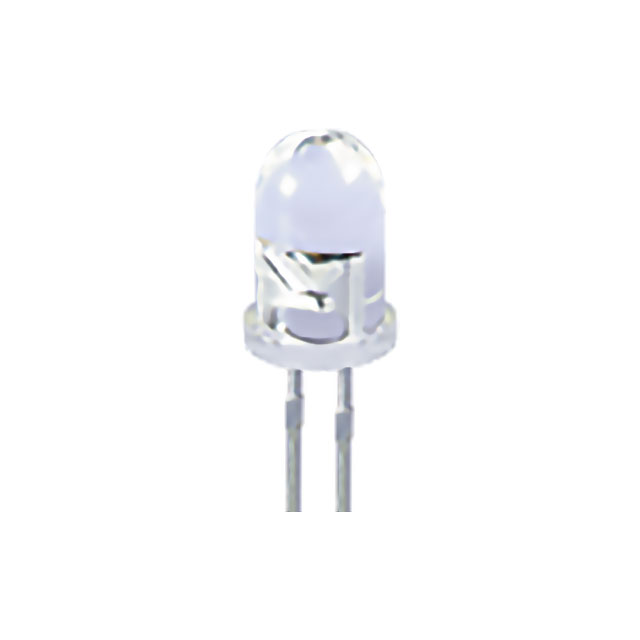

WP7113PD1C
ActiveKingbright
SENSOR PHOTODIODE 940NM RADIAL
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
WP7113PD1C
ActiveKingbright
SENSOR PHOTODIODE 940NM RADIAL
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | WP7113PD1C |
|---|---|
| Color - Enhanced | Infrared (NIR) |
| Current - Dark (Typ) [Max] | 10 nA |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Radial |
| Response Time | 6 ns |
| Spectral Range [Max] | 1120 nm |
| Spectral Range [Min] | 420 nm |
| Viewing Angle | 20 ° |
| Voltage - DC Reverse (Vr) (Max) [Max] | 170 V |
| Wavelength | 940 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
WP7113PD1C
Photodiode 940nm 6ns 20° Radial
