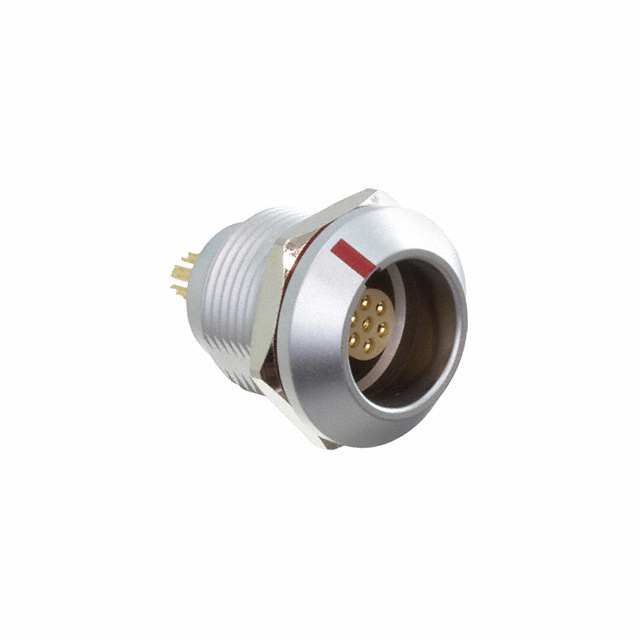

FLKC-07EGFS-GCP-001

Active

Amphenol LTW

CONN RCPT FMALE 7P GOLD SLDR CUP

Search across all available documentation for this part.

Active

Amphenol LTW

CONN RCPT FMALE 7P GOLD SLDR CUP

Technical Specifications

Parameters and characteristics for this part

Specification	FLKC-07EGFS-GCP-001

Applications	Testing Equipment & Measurement, Medical, Industrial, Telecommunications, Instrumentation
Color	Silver
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	7 A
Fastening Type	Push-Pull
Ingress Protection	IP68 - Dust Tight, Waterproof
Insert Material	Polyphenylene Sulfide (PPS)
Mounting Feature	Bulkhead - Rear Side Nut
Number of Positions	7
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Orientation	G
Primary Material	Metal
Shell Finish	Chrome
Shell Material	Copper Alloy
Shell Size - Insert	C-7
Shielding	Shielded
Voltage Rating	300 VDC

Part	Shell Material	Current Rating (Amps)	Insert Material	Voltage Rating	Number of Positions	Contact Finish - Mating	Orientation	Applications	Shell Size - Insert	Contact Material	Primary Material	Ingress Protection	Shell Finish	Shielding	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Color	Fastening Type	Mounting Feature
Amphenol LTW FLKC-07EGFS-GCP-001	Copper Alloy	7 A	Polyphenylene Sulfide (PPS)	300 VDC	7	Gold	G	Industrial Instrumentation Medical Telecommunications Testing Equipment & Measurement	C-7	Copper Alloy	Metal	IP68 - Dust Tight Waterproof	Chrome	Shielded	125 °C	-40 °C	Receptacle Female Sockets	Silver	Push-Pull	Bulkhead - Rear Side Nut

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

7 Position Circular Connector Receptacle, Female Sockets Solder Cup
