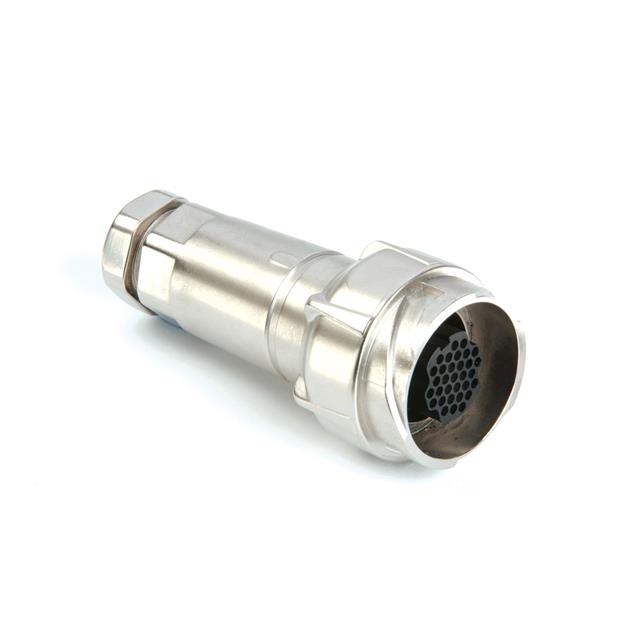

PXM7011/32S/CR/1113
ActiveBULGIN LIMITED
CIRCULAR CONNECTOR, BUCCANEER 7000 SERIES, ZINC BODY
Deep-Dive with AI
Search across all available documentation for this part.
PXM7011/32S/CR/1113
ActiveBULGIN LIMITED
CIRCULAR CONNECTOR, BUCCANEER 7000 SERIES, ZINC BODY
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PXM7011/32S/CR/1113 |
|---|---|
| Connector Type | Receptacle Housing |
| Contact Shape | Circular |
| Contact Type | Crimp and Solder Cup |
| Fastening Type | Bayonet Lock |
| Features | Backshell |
| Housing Color | Silver |
| Ingress Protection | IP69K, IP66, IP68, Dust Tight, Water Resistant, Waterproof |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 32 |
| Operating Temperature [Max] | 120 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | Keyed |
| Primary Material | Metal |
| Shell Finish | Nickel |
| Shell Material | Zinc Alloy |
| Shielding | Unshielded |
| Type | For Female Sockets |
PXM7011 Series
| Part | Ingress Protection | Contact Type | Shell Material | Connector Type | Orientation | Operating Temperature [Min] | Operating Temperature [Max] | Note | Shielding | Mounting Type | Type | Contact Shape | Housing Color | Fastening Type | Features | Shell Finish | Primary Material | Number of Positions | Contact Material | Backshell Material, Plating | Current Rating (Amps) | Color | Termination | Voltage Rating | Cable Opening [custom] | Cable Opening [custom] | Contact Finish - Mating | Cable Opening [Min] [custom] | Cable Opening [Max] [custom] | Cable Opening [Min] [custom] | Cable Opening [Max] [custom] | Number of Positions [custom] | Number of Positions [custom] | Number of Positions [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
BULGIN LIMITED | Dust Tight Water Resistant Waterproof IP66 IP68 IP69K | Crimp and Solder Cup | Zinc Alloy | Receptacle Housing | Keyed | -40 °C | 120 °C | Contacts Not Included | Unshielded | Free Hanging (In-Line) | For Female Sockets | Circular | Silver | Bayonet Lock | Backshell | Nickel | Metal | 32 | ||||||||||||||||
BULGIN LIMITED | Dust Tight Water Resistant Waterproof IP66 IP68 IP69K | Crimp and Solder Cup | Zinc Alloy | Receptacle Housing | Keyed | -40 °C | 120 °C | Contacts Not Included | Shielded | Free Hanging (In-Line) | For Female Sockets | Circular | Silver | Bayonet Lock | Backshell | Nickel | Metal | 10 | ||||||||||||||||
BULGIN LIMITED | Dust Tight Water Resistant Waterproof IP66 IP68 IP69K | Crimp and Solder Cup | Zinc Alloy | Receptacle Housing | Keyed | -40 °C | 120 °C | Contacts Not Included | Unshielded | Free Hanging (In-Line) | For Female Sockets | Circular | Silver | Bayonet Lock | Backshell | Nickel | Metal | 32 | ||||||||||||||||
BULGIN LIMITED | Dust Tight Water Resistant Waterproof IP66 IP68 IP69K | Crimp and Solder Cup | Zinc Alloy | Receptacle Housing | Keyed | -40 °C | 120 °C | Contacts Not Included | Unshielded | Free Hanging (In-Line) | For Male Pins | Circular | Silver | Bayonet Lock | Backshell | Nickel | Metal | 10 | ||||||||||||||||
BULGIN LIMITED | Dust Tight Water Resistant Waterproof IP66 IP68 IP69K | Crimp and Solder Cup | Zinc Alloy | Receptacle Housing | Keyed | -40 °C | 120 °C | Contacts Not Included | Shielded | Free Hanging (In-Line) | For Female Sockets | Circular | Silver | Bayonet Lock | Backshell | Nickel | Metal | 10 | ||||||||||||||||
BULGIN LIMITED | Dust Tight Water Resistant Waterproof IP66 IP68 IP69K | Crimp and Solder Cup | Zinc Alloy | Receptacle Housing | Keyed | -40 °C | 120 °C | Contacts Not Included | Unshielded | Free Hanging (In-Line) | For Male Pins | Circular | Silver | Bayonet Lock | Backshell | Nickel | Metal | 32 | ||||||||||||||||
BULGIN LIMITED | Dust Tight Water Resistant Waterproof IP66 IP68 IP69K | Crimp and Solder Cup | Zinc Alloy | Receptacle Housing | Keyed | -40 °C | 120 °C | Contacts Not Included | Shielded | Free Hanging (In-Line) | For Male Pins | Circular | Silver | Bayonet Lock | Backshell | Nickel | Metal | 32 | ||||||||||||||||
BULGIN LIMITED | Dust Tight Water Resistant Waterproof IP66 IP68 IP69K | Zinc Alloy | Receptacle Female Sockets | Keyed | -40 °C | 120 °C | Unshielded | Free Hanging (In-Line) | Bayonet Lock | Backshell | Nickel | Metal | 2 | Brass | Nickel Zinc Alloy | 25 A | Silver | Screw | 600 V | 0.276 in 0.354 in | 7 mm 9 mm | Nickel | ||||||||||||
BULGIN LIMITED | Dust Tight Water Resistant Waterproof IP66 IP68 IP69K | Crimp and Solder Cup | Zinc Alloy | Receptacle Housing | Keyed | -40 °C | 120 °C | Contacts Not Included | Shielded | Free Hanging (In-Line) | For Male Pins | Circular | Silver | Bayonet Lock | Backshell | Nickel | Metal | 10 | ||||||||||||||||
BULGIN LIMITED | Dust Tight Water Resistant Waterproof IP66 IP68 IP69K | Zinc Alloy | Male Pins Receptacle | Keyed | -40 °C | 120 °C | Shielded | Free Hanging (In-Line) | Bayonet Lock | Backshell | Nickel | Metal | Brass | Nickel Zinc Alloy | 25 A | Silver | Screw | 600 V | Nickel | 13 mm | 15 mm | 0.512 in | 0.591 in | 3 | 1 | 2 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
PXM7011 Series
32 (Power) Position Circular Connector Receptacle Housing Free Hanging (In-Line) Backshell
