19-04-14206-S6305

Active

Parker Chomerics

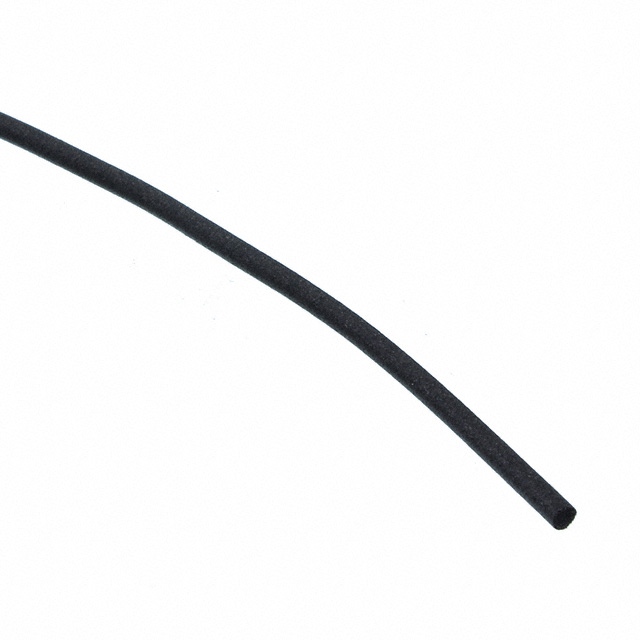

RFI GASKET ELASTOMER NICKEL FEET

Search across all available documentation for this part.

Active

Parker Chomerics

RFI GASKET ELASTOMER NICKEL FEET

Technical Specifications

Parameters and characteristics for this part

Specification	19-04-14206-S6305

Attachment Method	No Adhesive
Length	Enter Number of Feet in Order Quantity
Material	Conductive Elastomer
Operating Temperature [Max]	66 °C
Operating Temperature [Min]	-29 °C
Plating	Nickel
Shape	Round
Spool Size	121.92 m
Spool Size	400 ft
Type	Gasket
Width [x]	2.03 mm
Width [x]	0.08 "

Part	Shape	Material	Attachment Method	Operating Temperature [Max]	Operating Temperature [Min]	Spool Size [custom]	Spool Size [custom]	Width [y]	Width [y]	Type	Length	Plating	Width [x]	Width [x]
Parker Chomerics 19-04-20581-6502	Round	Conductive Elastomer	No Adhesive	66 °C	-29 °C	30.48 m	100 ft	1.35 mm	0.053 in	Gasket	Enter Number of Feet in Order Quantity	Nickel
Parker Chomerics 19-04-27546-1298	Round			66 °C	-29 °C			1.57 mm	0.062 in	Gasket	Enter Number of Feet in Order Quantity
Parker Chomerics 19-04-16162-6502	Round	Conductive Elastomer	No Adhesive	66 °C	-29 °C					Gasket		Nickel	0.1 "	2.54 mm
Parker Chomerics 19-04-22371-1298	Round			66 °C	-29 °C					Gasket	Enter Number of Feet in Order Quantity		0.043 in	1.09 mm
Parker Chomerics 19-04-28067-6502	Round	Conductive Elastomer	Non-Conductive Adhesive	66 °C	-29 °C					Gasket		Nickel	0.06 in	1.52 mm
Parker Chomerics 19-04-28067-S6305	Round	Conductive Elastomer	No Adhesive	66 °C	-29 °C					Gasket		Nickel	0.06 in	1.52 mm
Parker Chomerics 19-04-28402-1298	Round			66 °C	-29 °C			1.68 mm	0.066 in	Gasket
Parker Chomerics 19-04-14206-6502	Round	Conductive Elastomer	No Adhesive	66 °C	-29 °C					Gasket		Nickel	0.08 "	2.03 mm
Parker Chomerics 19-04-22951-1298	Round			66 °C	-29 °C					Gasket	Enter Number of Feet in Order Quantity
Parker Chomerics 19-04-14206-1298	Round			66 °C	-29 °C					Gasket	Enter Number of Feet in Order Quantity		0.08 "	2.03 mm
